CHRYSLER OEM Software with RLink Connection Instructions

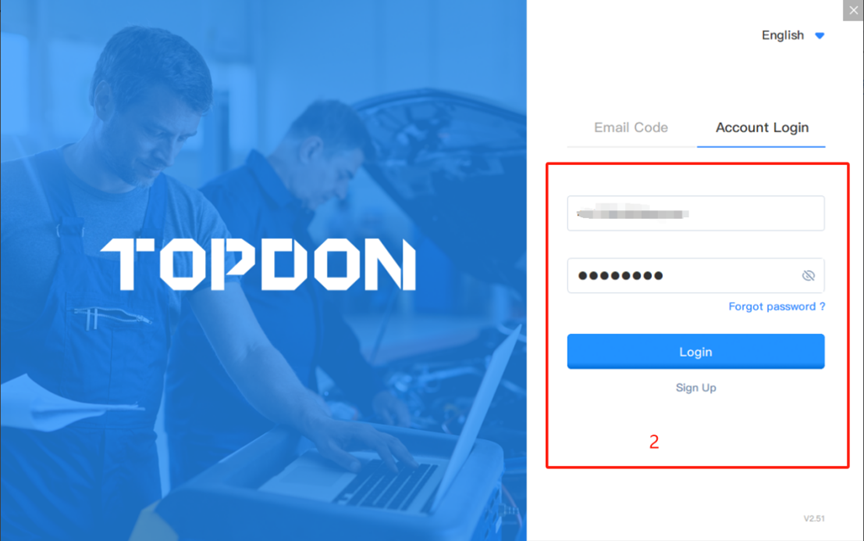

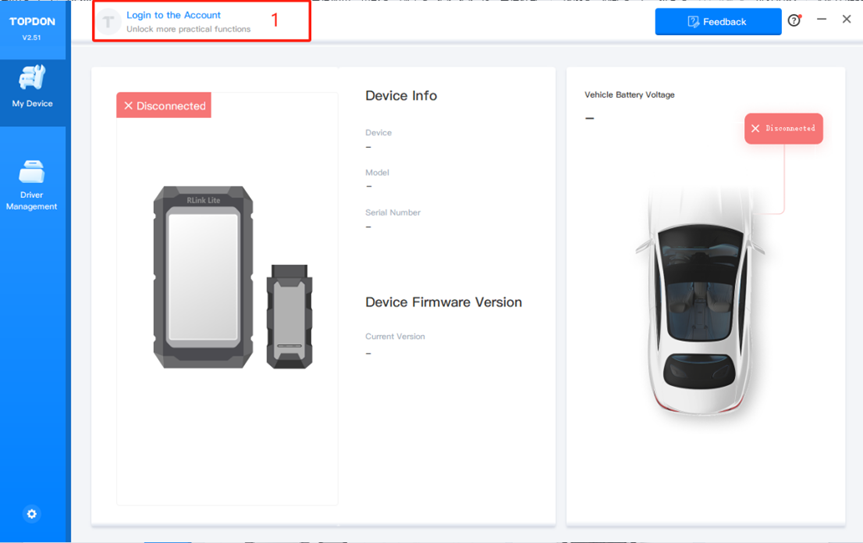

Note: After binding and activating the device
and downloading the driver, you can use the RLink device to perform vehicle diagnostics
without opening the RLink Platform later.
3. Click Driver Management > Driver Download. (Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.)

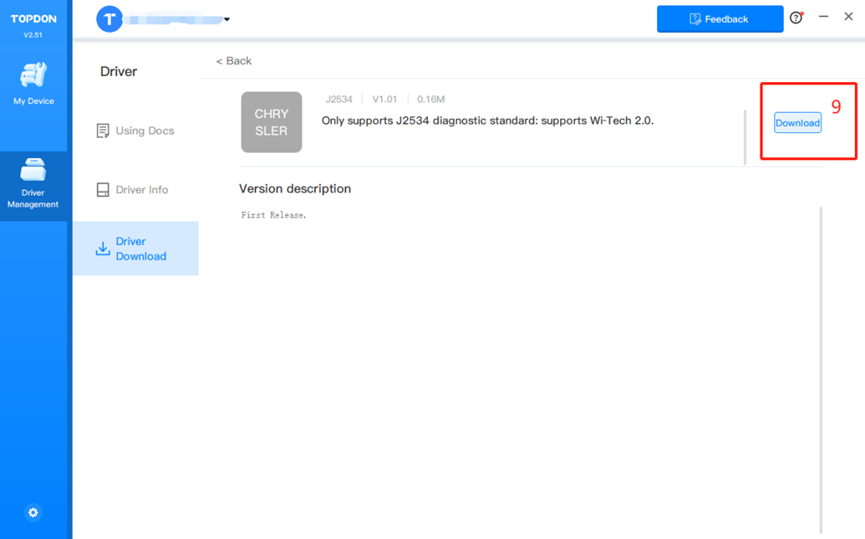

4. Click CHRYSLER and click Download to download the driver.

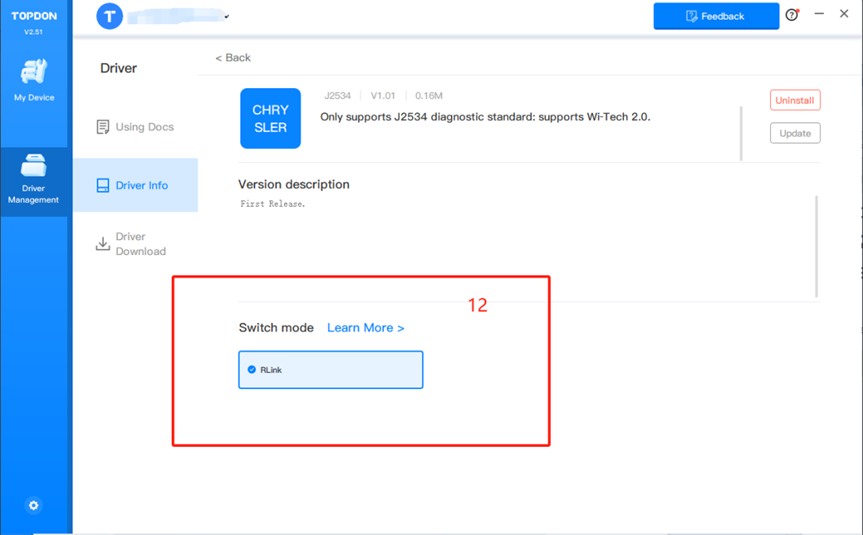

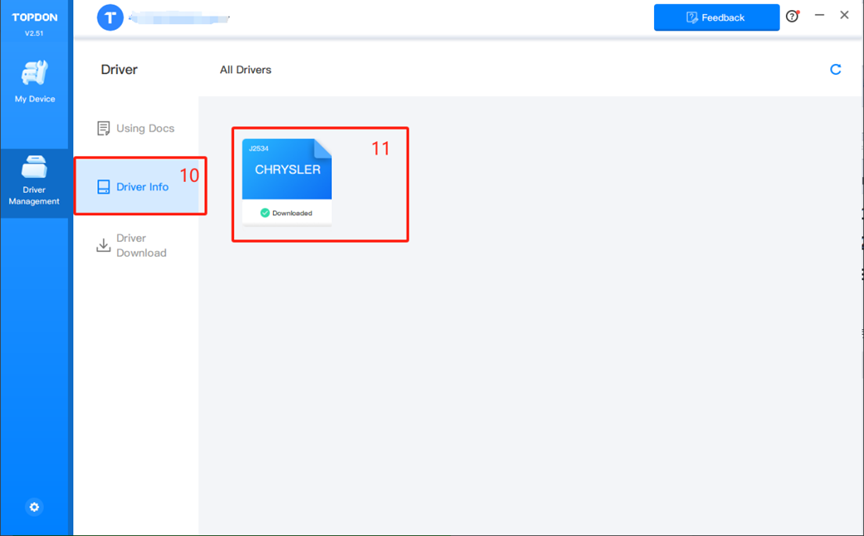

5. Click Driver Management > Driver Info. Then click CHRYSLER to check the driver mode.
6. When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

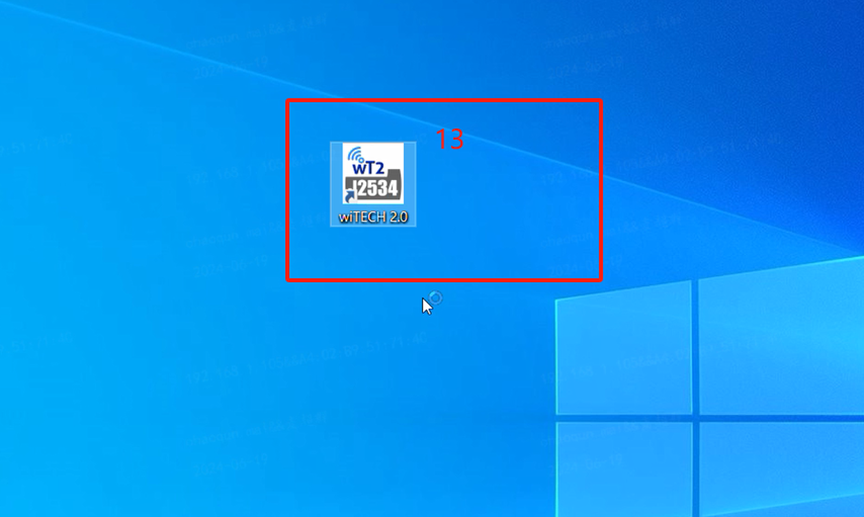

7. Double click the icon to open the wiTECH 2.0. Click Connect > Device. Then click Non Verified J2534 Device and choose TOPDON - RLink.

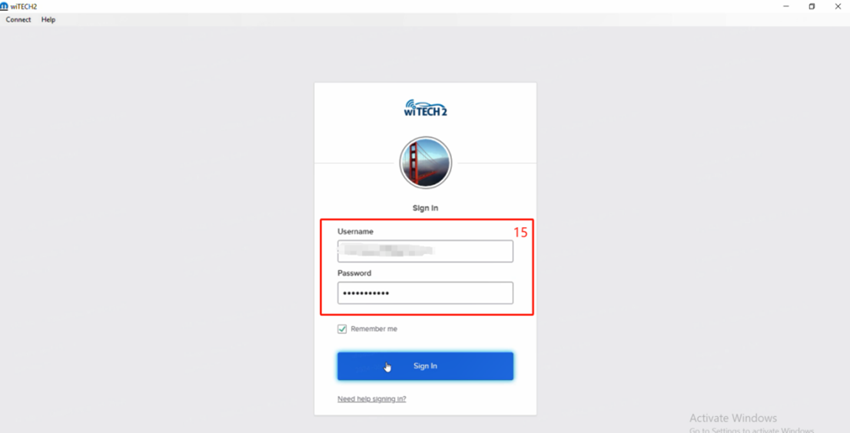

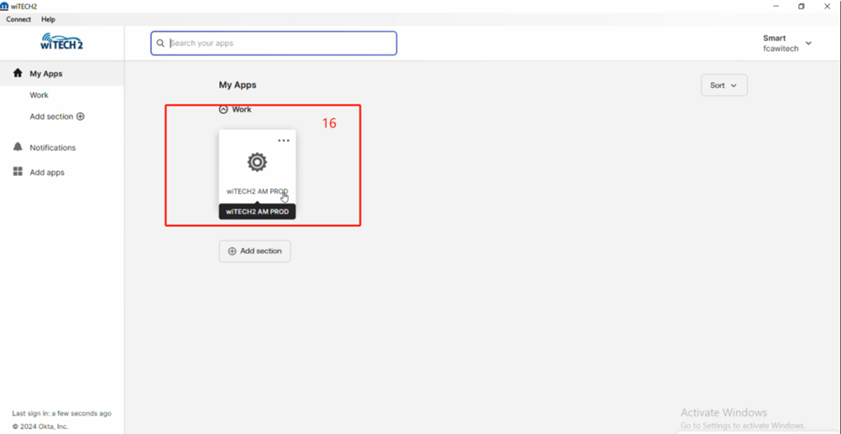

8. Log in to the wiTECH2 account registered on the CHRYSLER official website. Choose wiTECH2 AM PROD to start vehicle diagnostics and vehicle faults reading.
