FORD OEM Software with RLink Connection Instructions

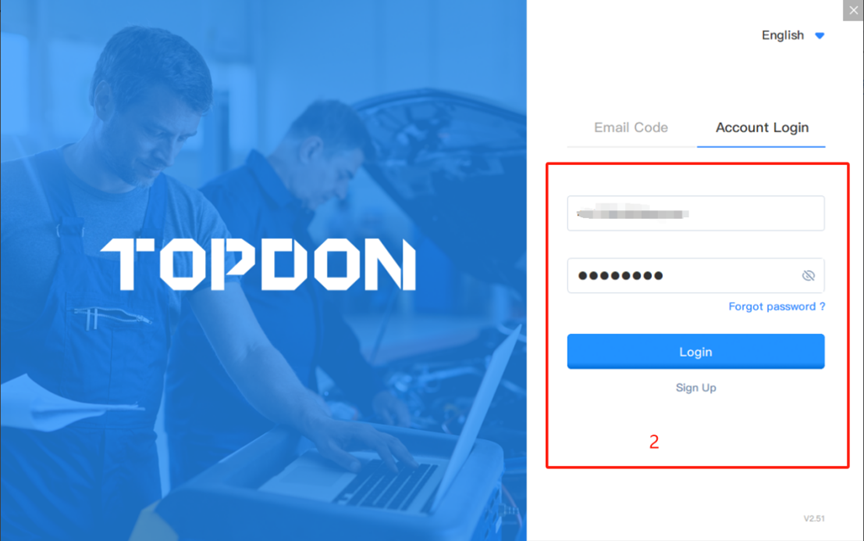

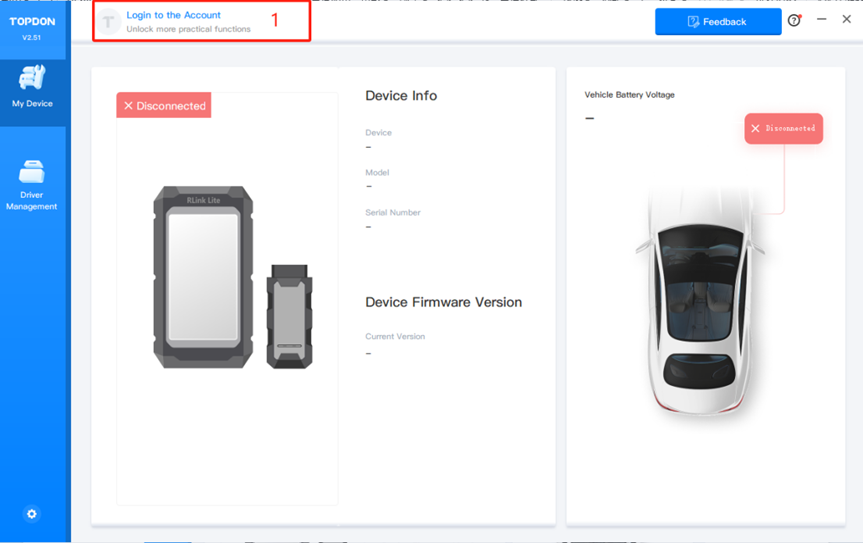

Note: After binding and activating the
device and downloading the driver, you can use the RLink device to perform
vehicle diagnostics without opening the RLink Platform later.
2.

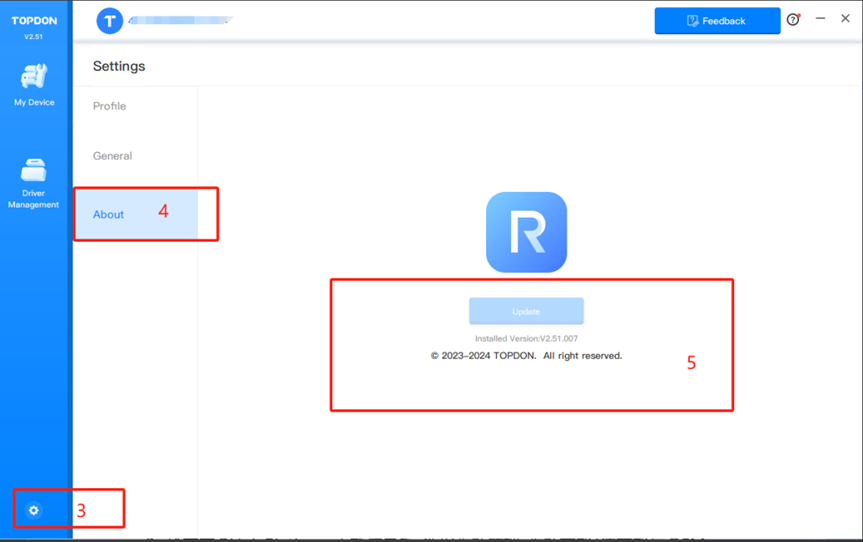

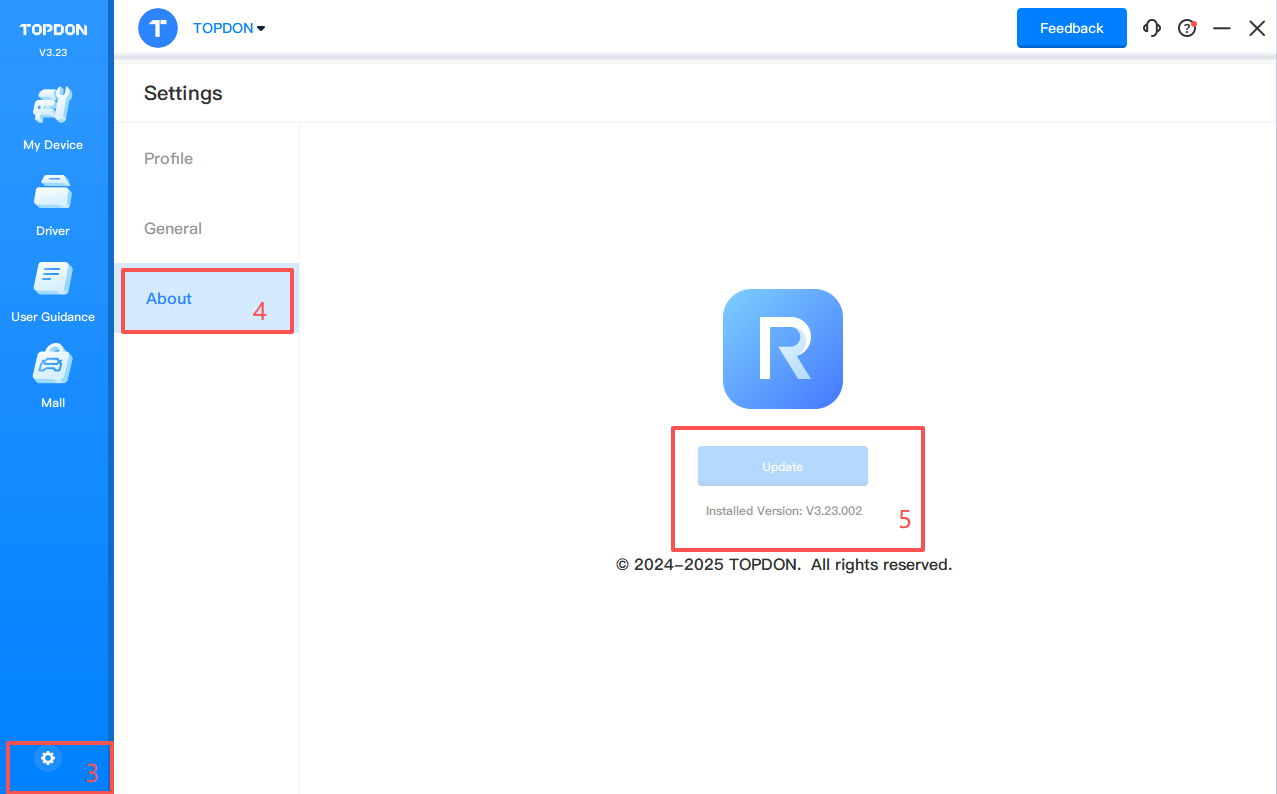

Click the settings icon. Then click About to check whether
there is an update for the RLink Platform. If yes, click Update.

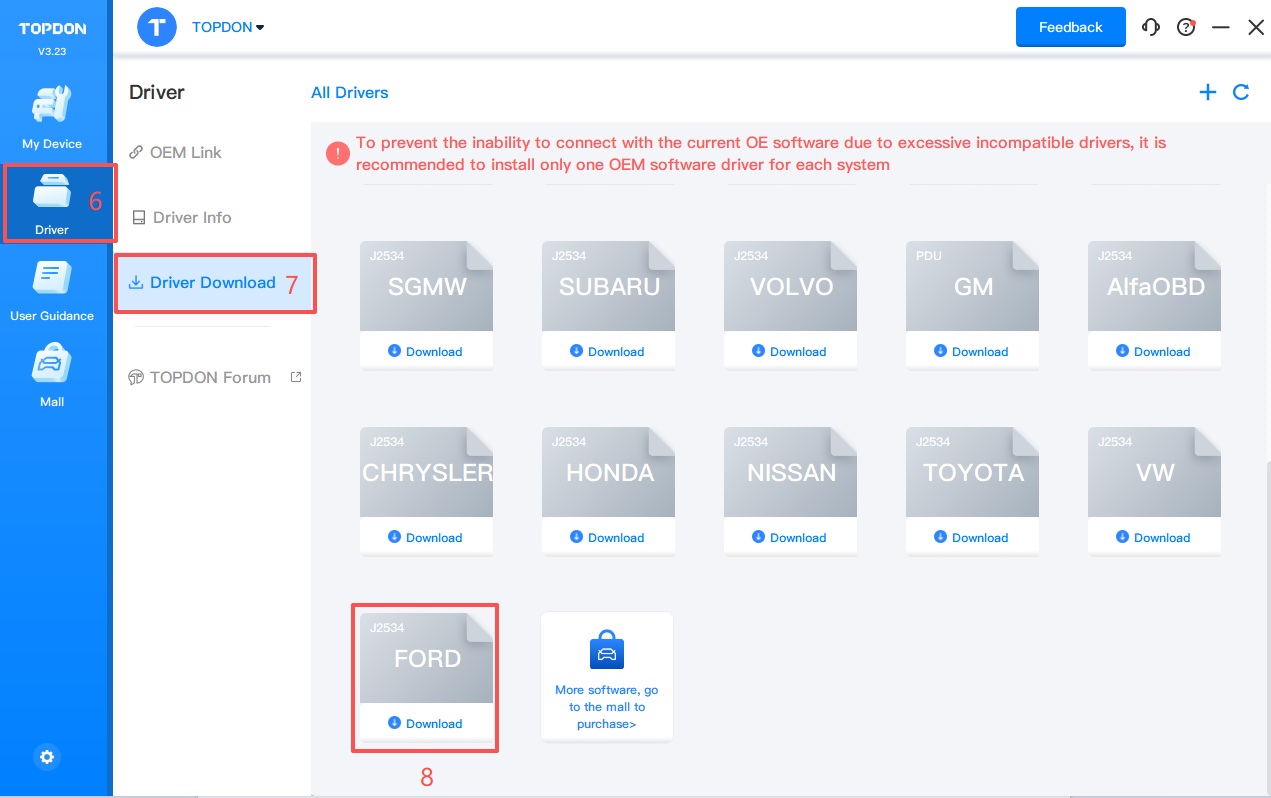

3. Click Driver Management > Driver Download. (Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.)

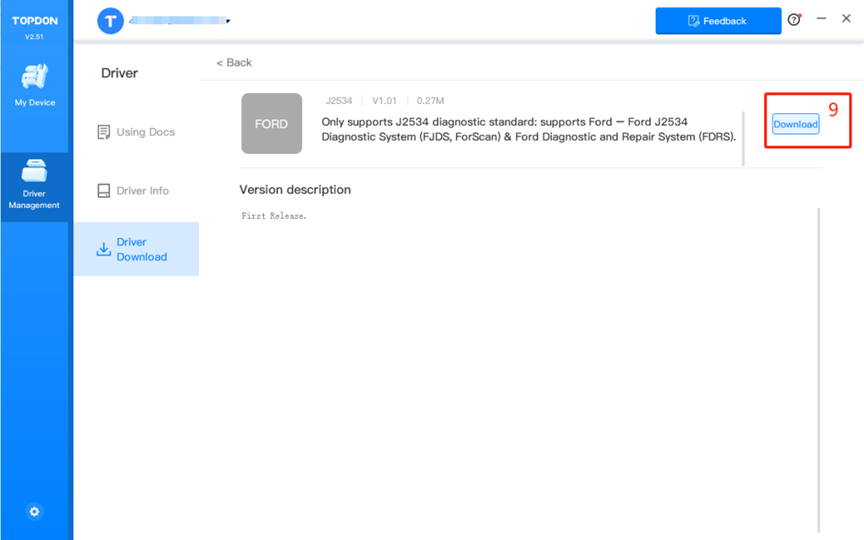

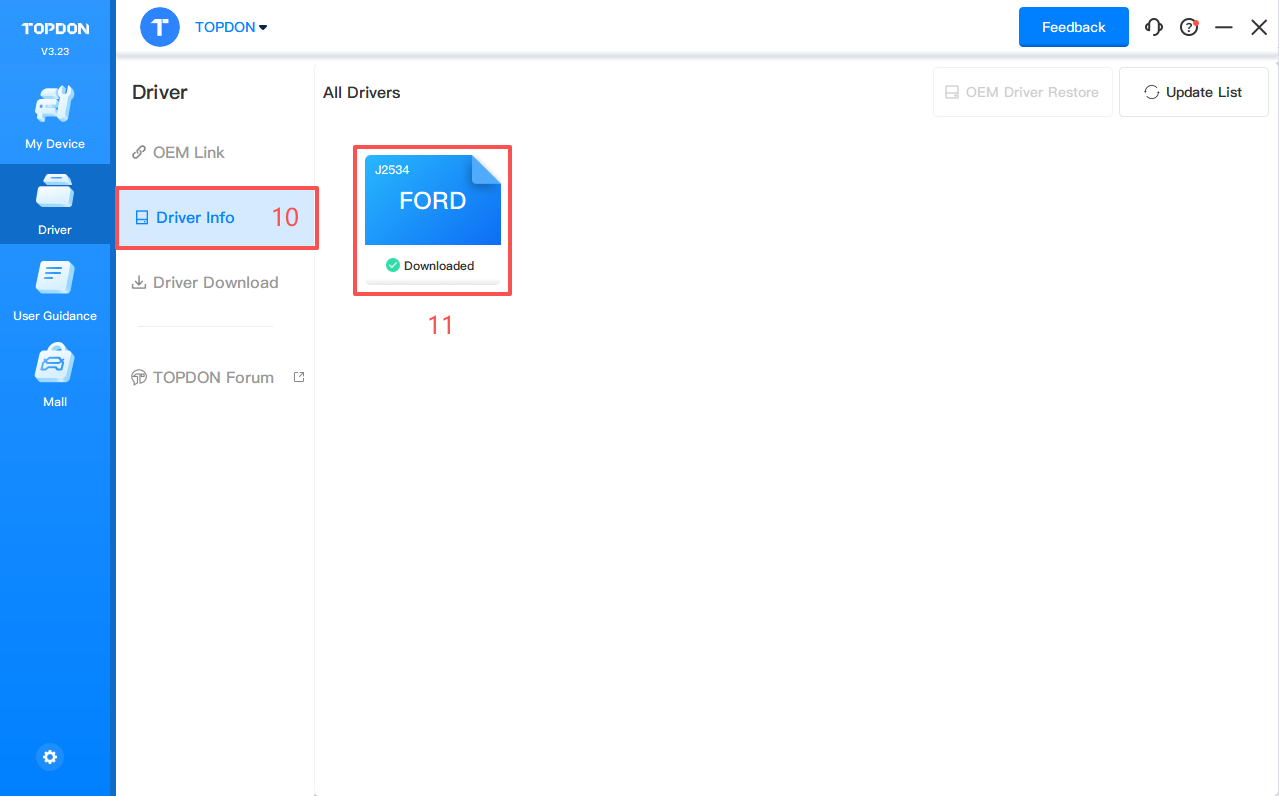

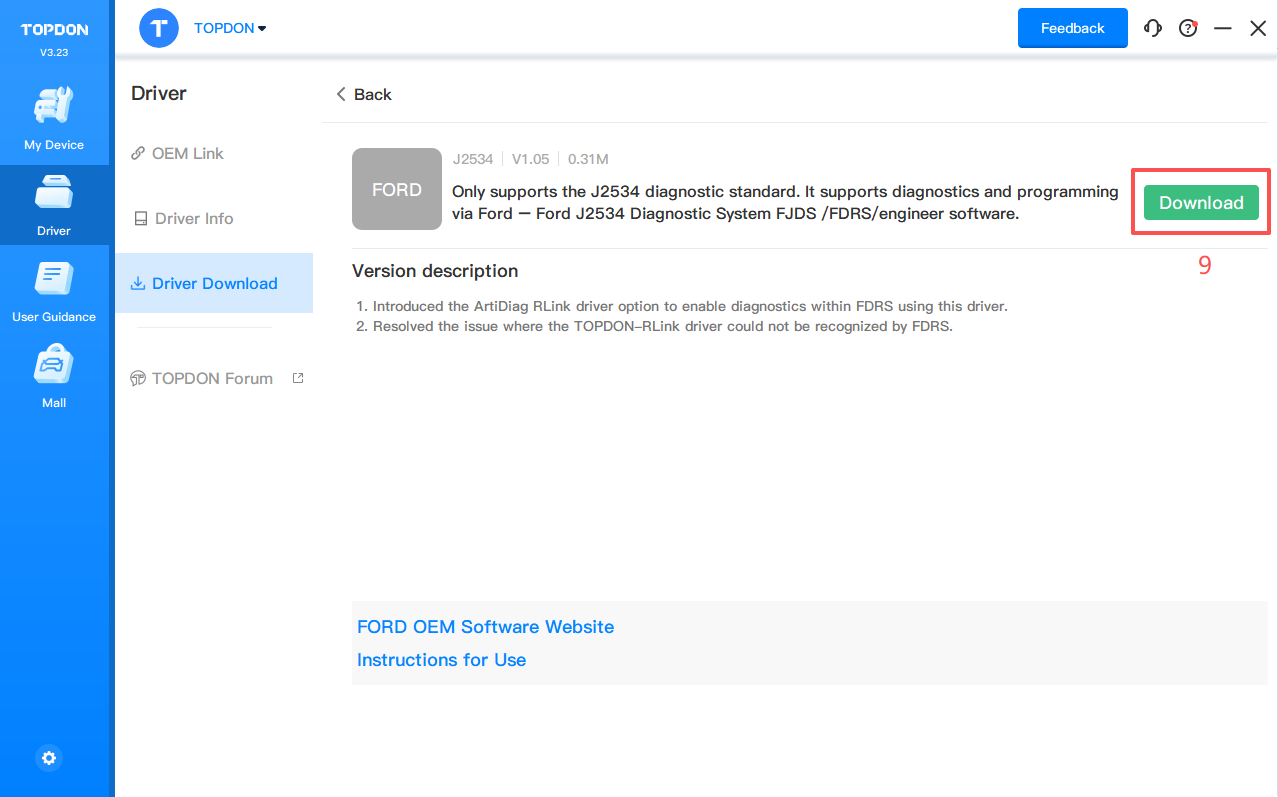

4. Click FORD and click
Download to download the driver.

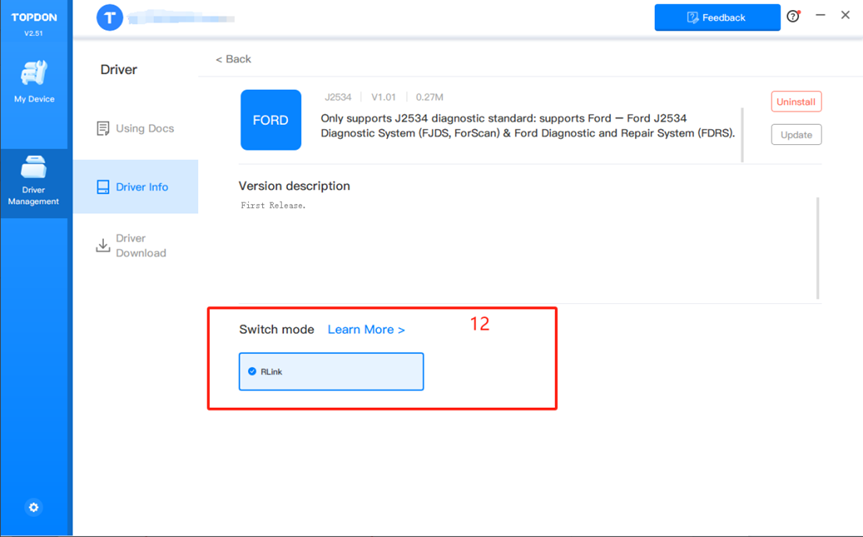

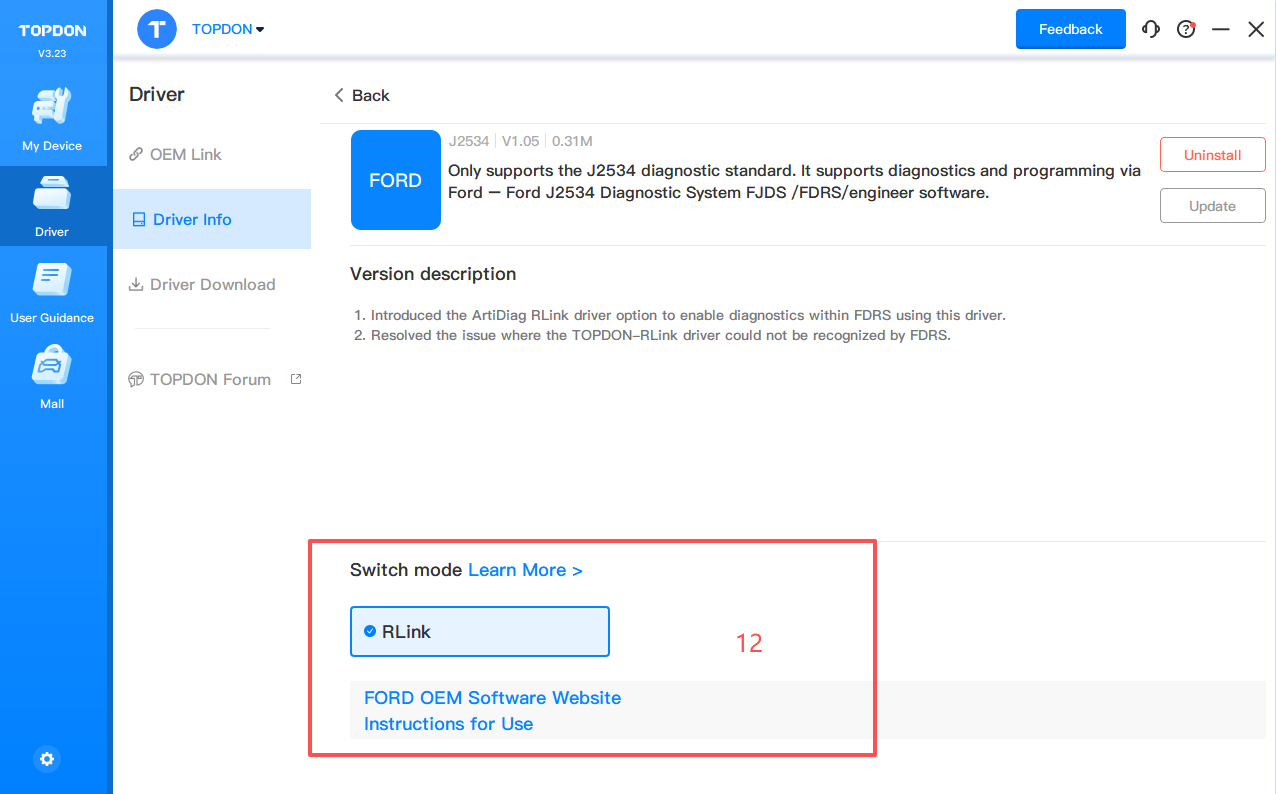

6. When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.
7.

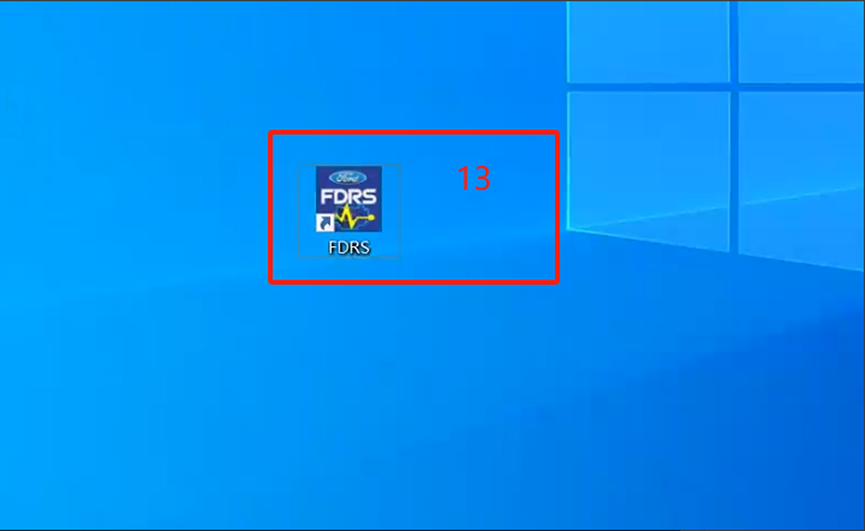

Double click the icon
to open the FDRS.
8.

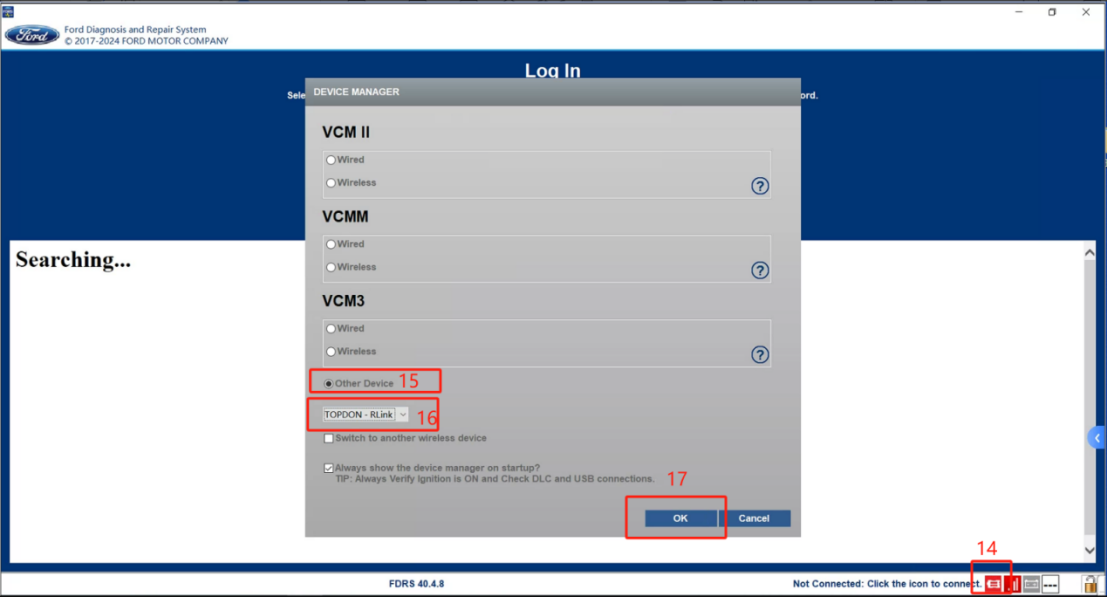

Click the icon on the lower right corner. Click Other Device and
choose RLink. Then click OK to continue.

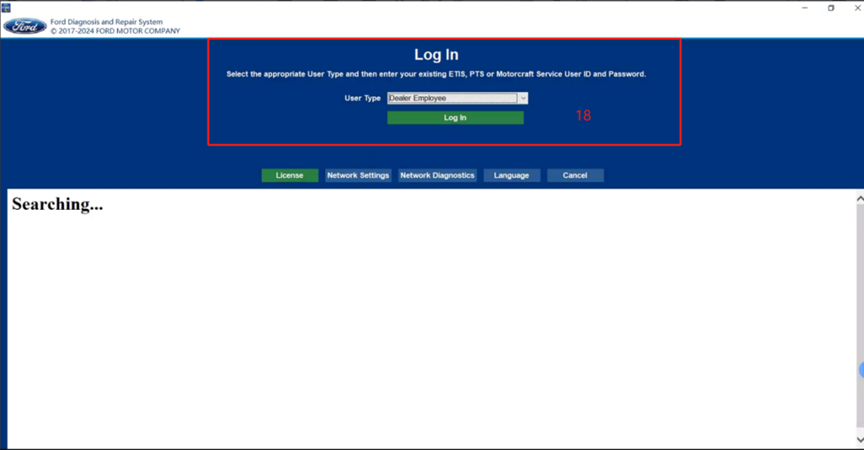

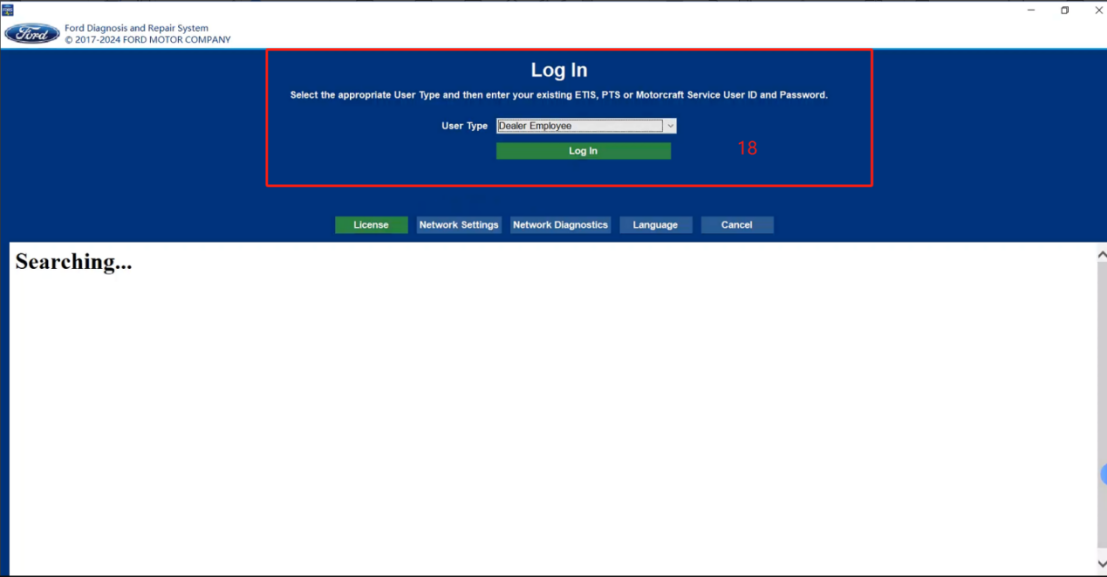

9. Log in to the FDRS account.
10.

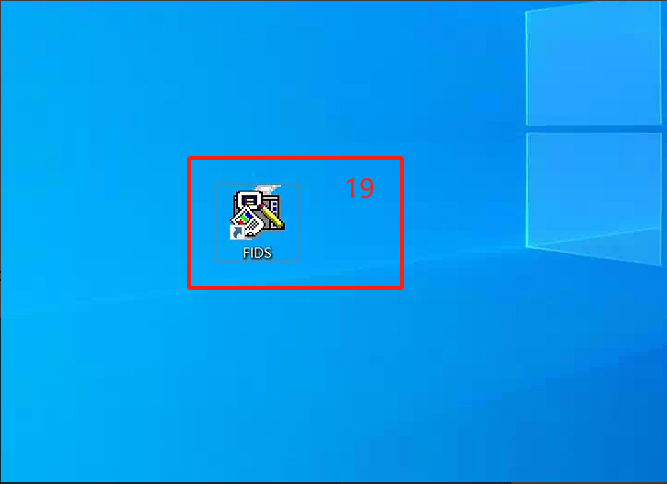

Double click the FJDS to start diagnostics.

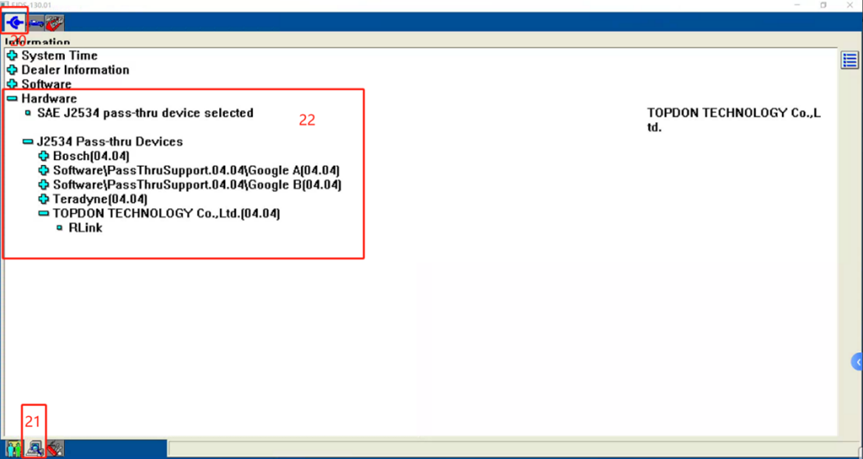

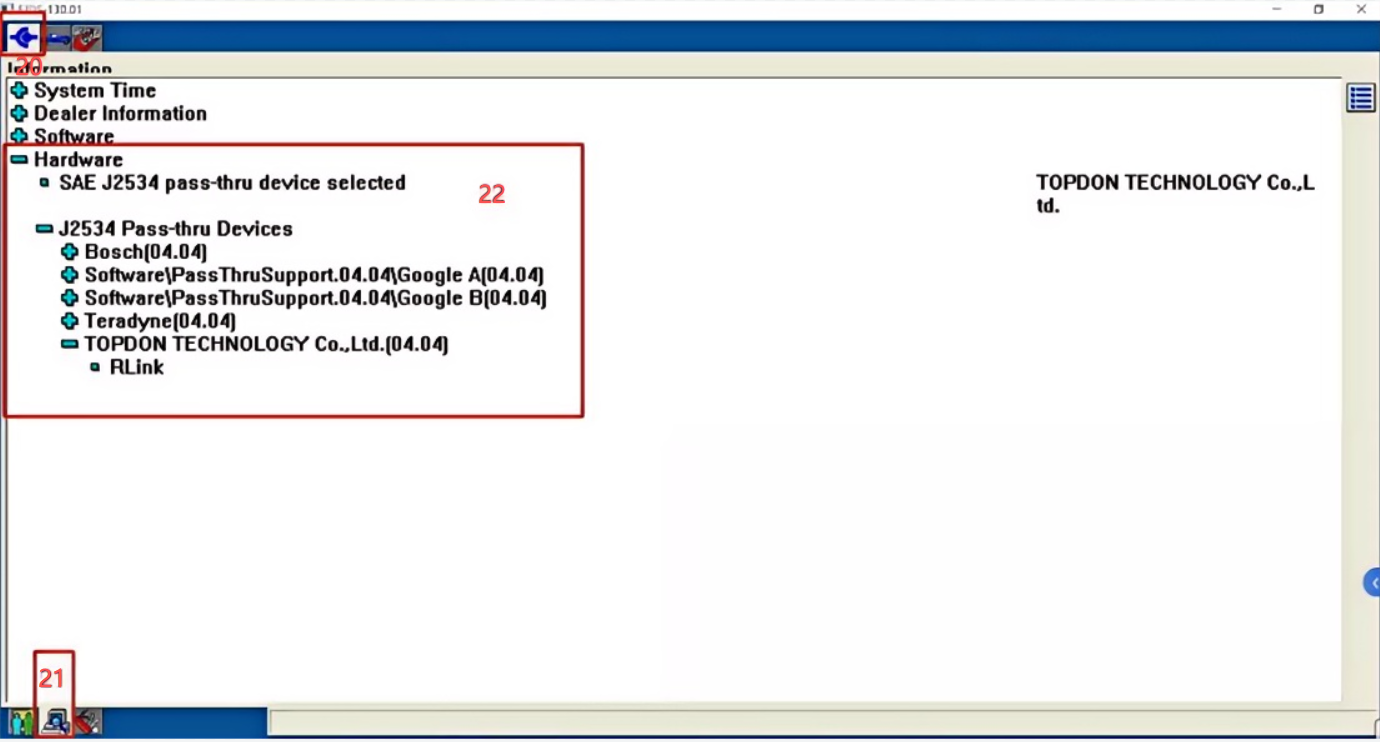

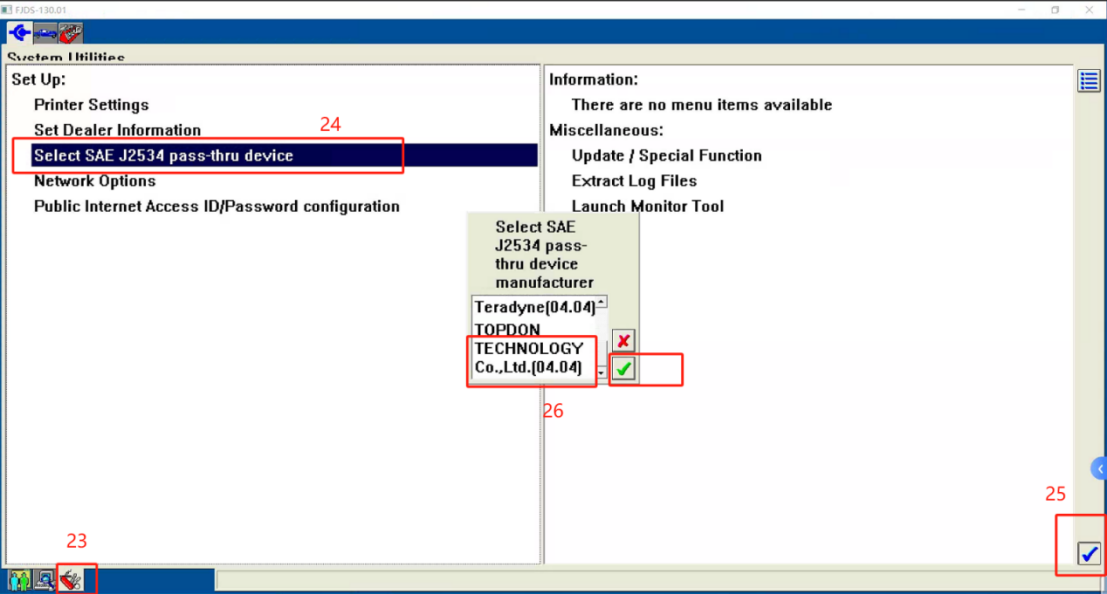

12. Follow
the orders in the figure below to select the device.
13.

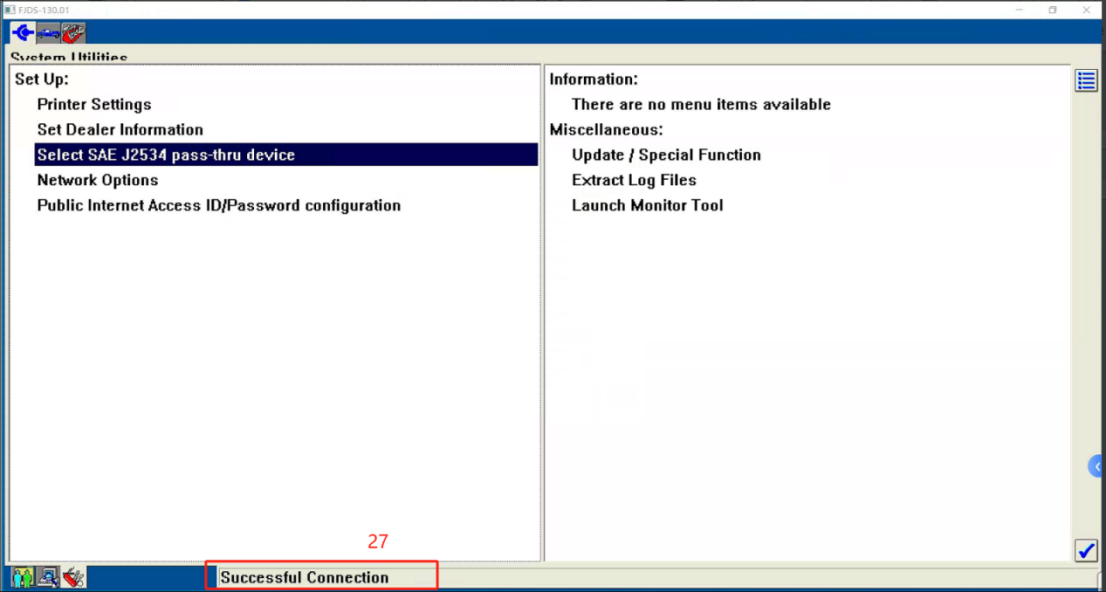

When
the connection is successful, a successful connection message will be
displayed.

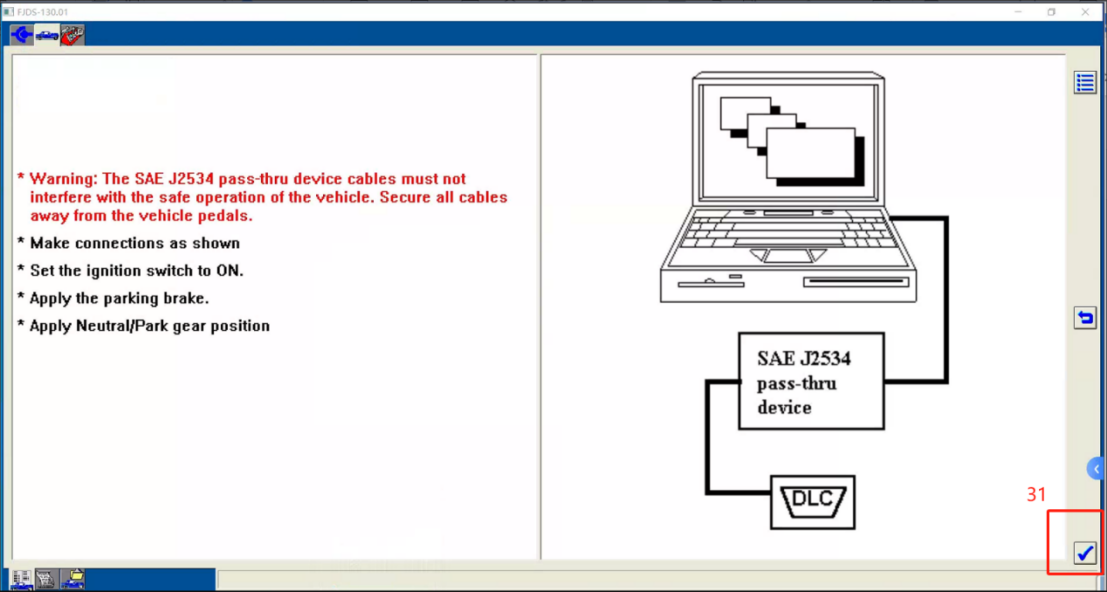

14.

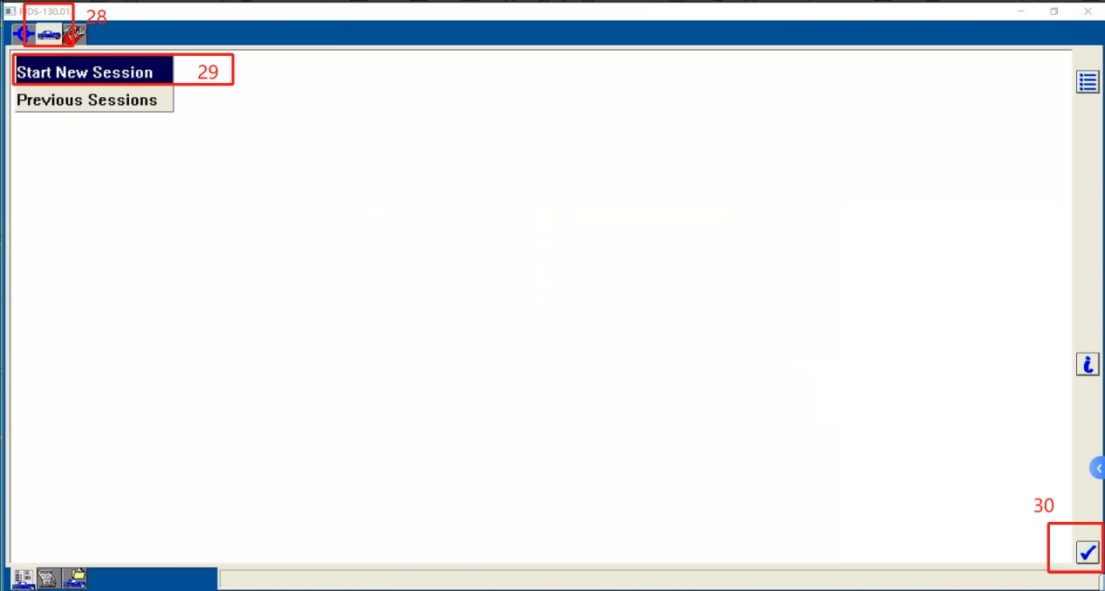

Select
vehicle for diagnostics after successful connection.
15.

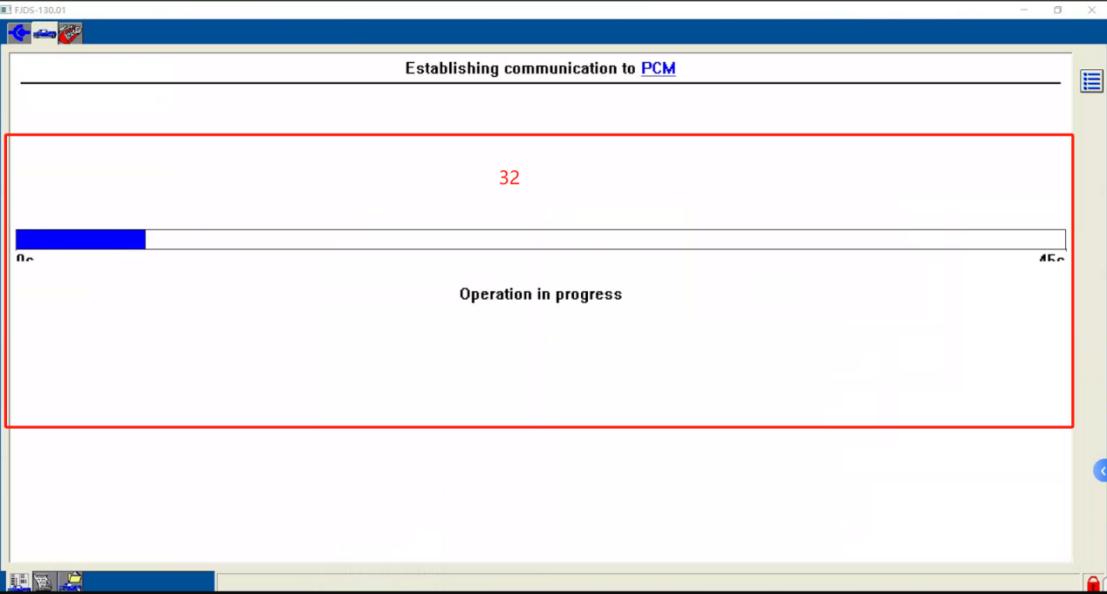

The
system will detect the vehicle automatically.
