TC001/TC002 - Basic Operations

TC001/TC002 - Basic Operations

Overview:

In this article, you will learn about basic operations in the TC001/TC002 application, how to use the device properly.

How to download the thermal imager applications

For TC001, please search and download TC001 in Google playstore, or click this link: https://www.topdon.com/pages/pro-down?fuzzy=TC001

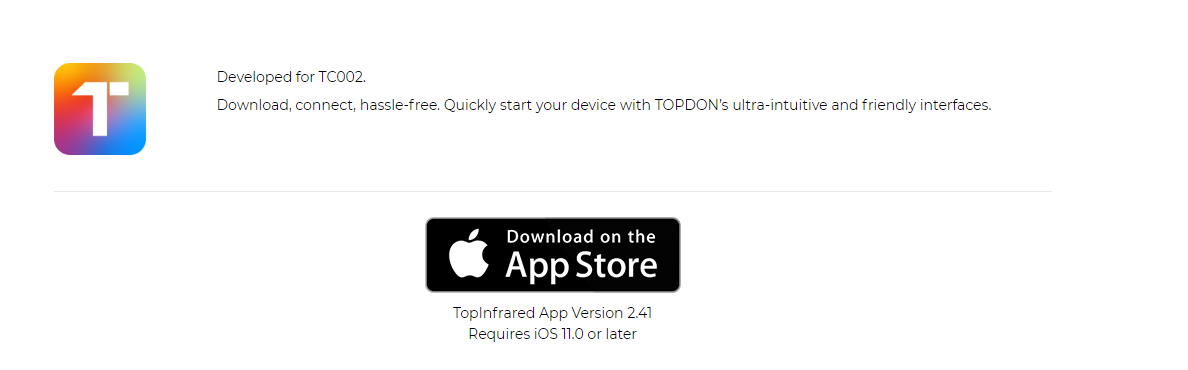

For TC002, please search and download Topinfrared in the App store, or click this link: https://www.topdon.com/pages/pro-down?fuzzy=TC002


1. Image calibration

This function needs to be operated when a ghost image appears or there is inaccurate temperature reading.
Here is the path: enter the app > personal information > image calibration

2. 3D edit

You can find this function in both the app and TCview, enter the Gallery > select a image > 3D edit.

3. To read the user manual of TCview(for TC001 only)

Please download the TCview program from Topdon website: https://www.topdon.com/pages/pro-down?fuzzy=TC001, enter the program, select File > Help > User manual to download it.

4. Emissivity Selection

This function is used when you want to set different emissivity based on different items.
Here is the path: enter the app > Personal Information > Temerature Correction

5. Temperature data exporting

Please enter the app > Temperature monitoring > enter the temperature monitor record > select export to get the excel data.

6. Adding date/location on the thermal image

In the interface for taking thermal imaging images, please tap " ... " settings > watermarks, you can choose to enable access permissions for location and date/time.

7. Generating thermal image report

Select the corresponding thermal image > click on the report > select the desired parameters to display and click next. The preview screen allows you to generate a DPF and share it, or click finish to save the generated report within the app.
