GM OEM Software with RLink Connection Instructions

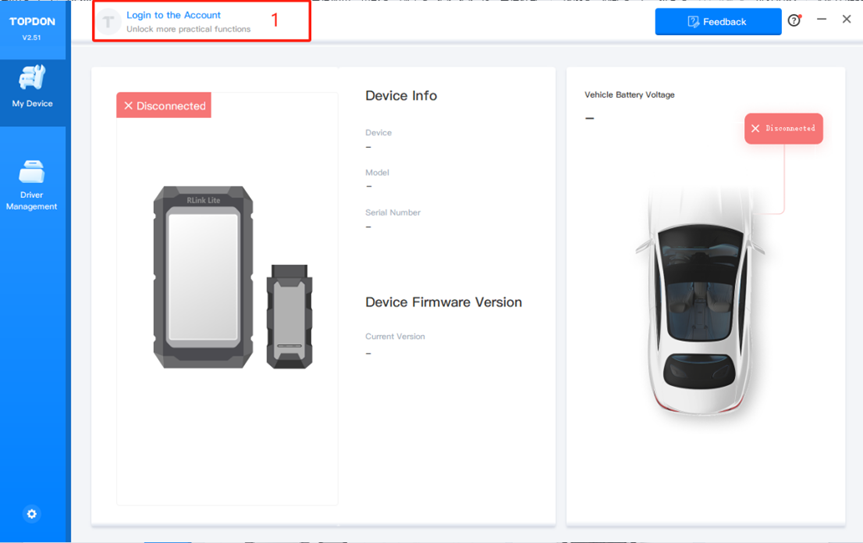

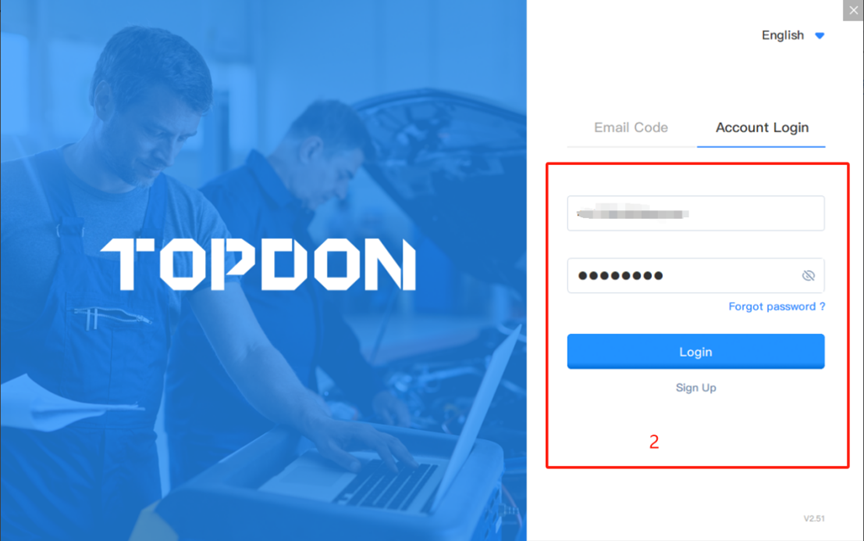

1. Open the RLink Platform and click Login, it will automatically jump to the login screen upon the first use. Log in to the account bound to the RLink device.
Note: After
binding and activating the device and downloading the driver, you can use the
RLink device to perform vehicle diagnostics without opening the RLink Platform
later.
2.

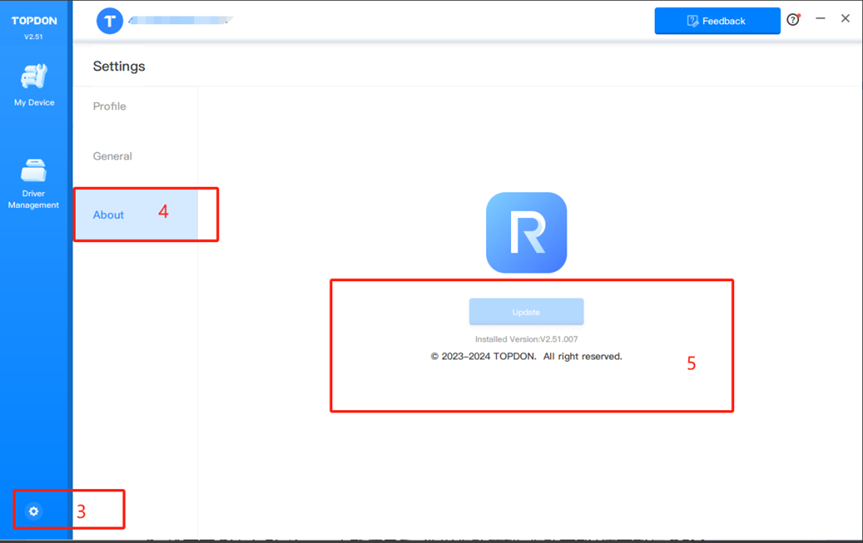

Click the settings icon. Then click About to check whether
there is an update for the RLink Platform. If yes, click Update.

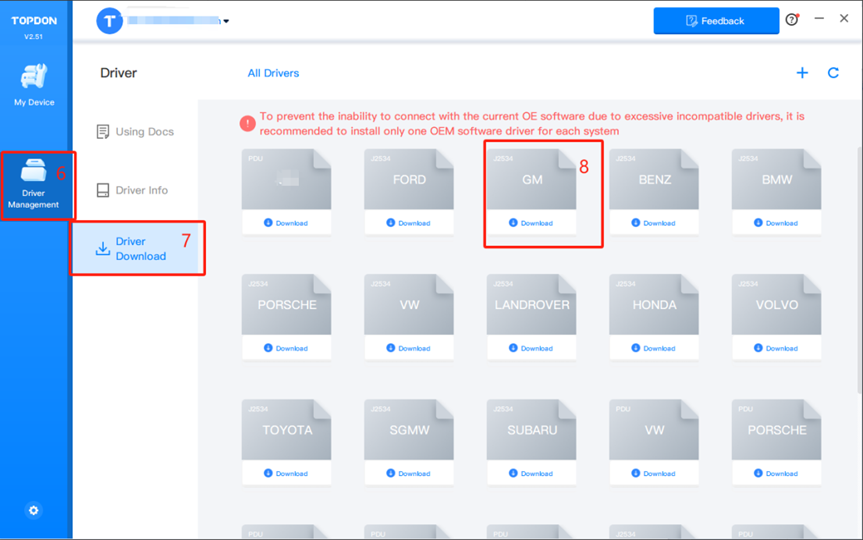

3. Click Driver Management > Driver Download. (Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.)
4.

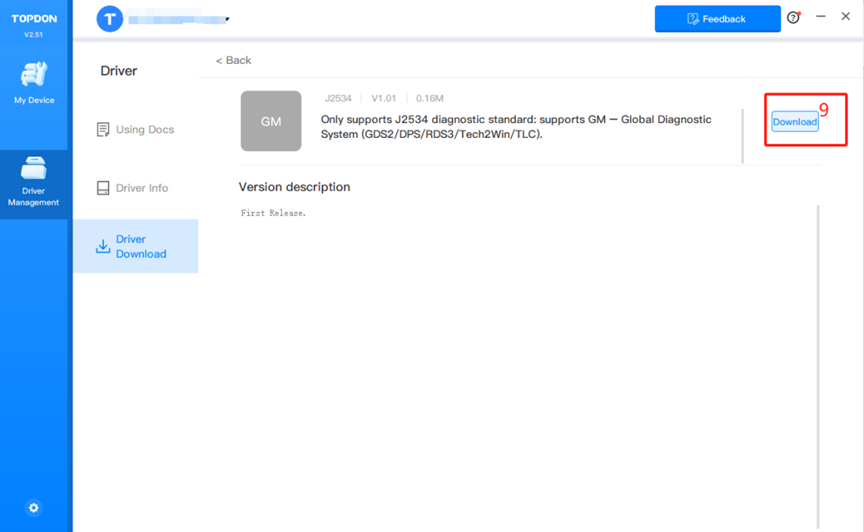

Click GM and click Download to download the driver.
5.

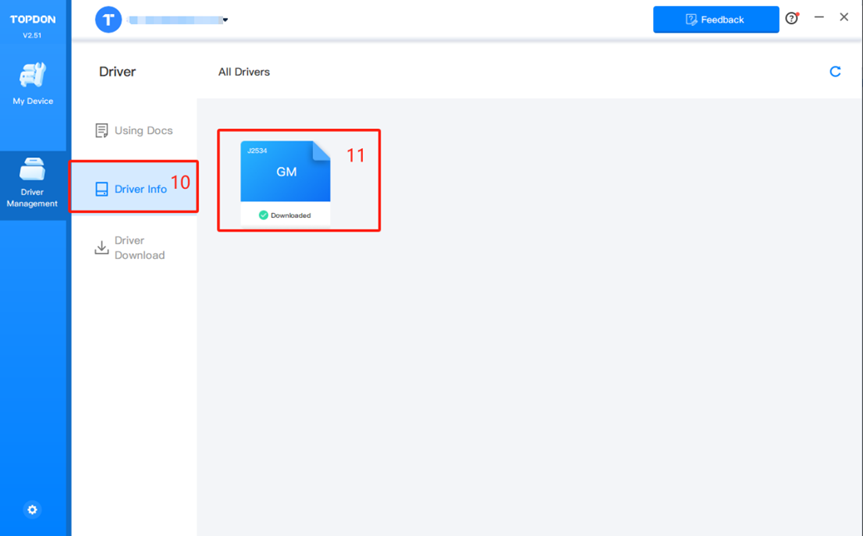

Click Driver Management > Driver Info. Then click GM
to configure the driver mode.

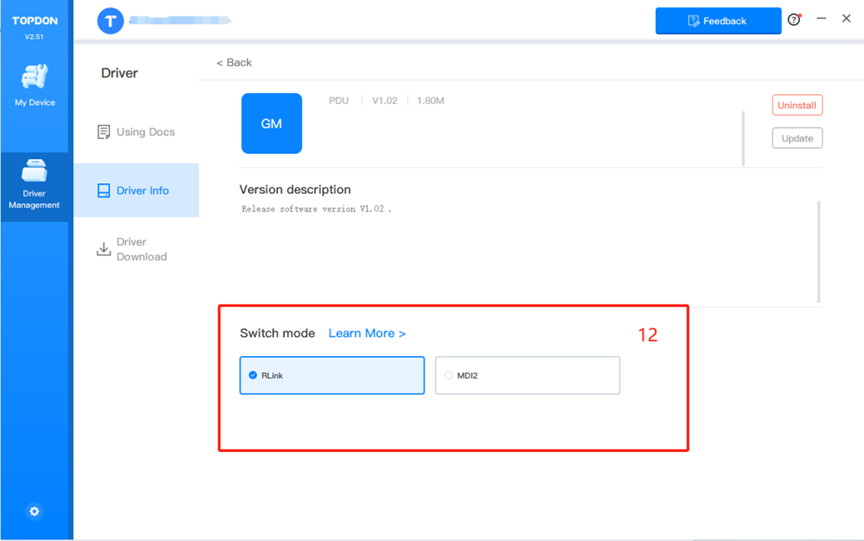

6. There are two driver modes for GM.
To use RLink device for diagnostics, select RLink mode.
To use the original VCI device for diagnostics, select MDI2 mode (restore the original driver mode).
Note: For the RLink J2534, the J2534 driver is the automatic default driver. You do not need to select the driver mode here.
8. Click Diagnostics and choose RLink driver mode. Then click Continue.
9. Click Enter to start vehicle
diagnostics.
