TOYOTA OEM Software with RLink Connection Instructions

TOYOTA OEM Software with RLink Connection Instructions

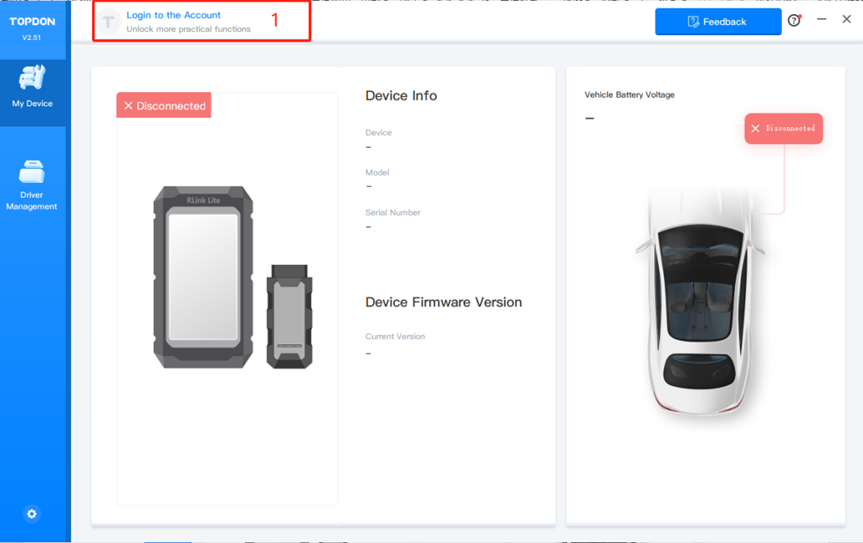

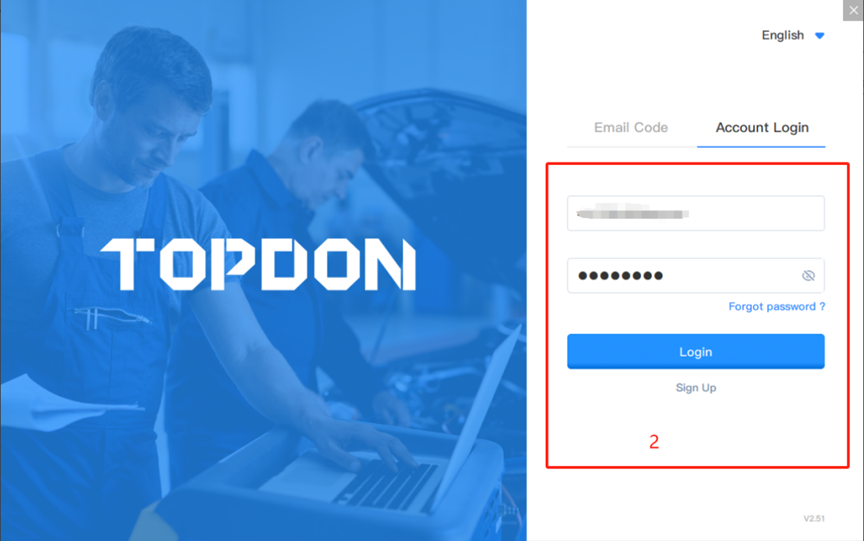

1.      Open the RLink Platform and click Login, it will automatically jump to the login screen upon the first use. Log in to the account bound to the RLink device.

Note: After binding and activating the device and downloading the driver, you can use the RLink device to perform vehicle diagnostics without opening the RLink Platform later.

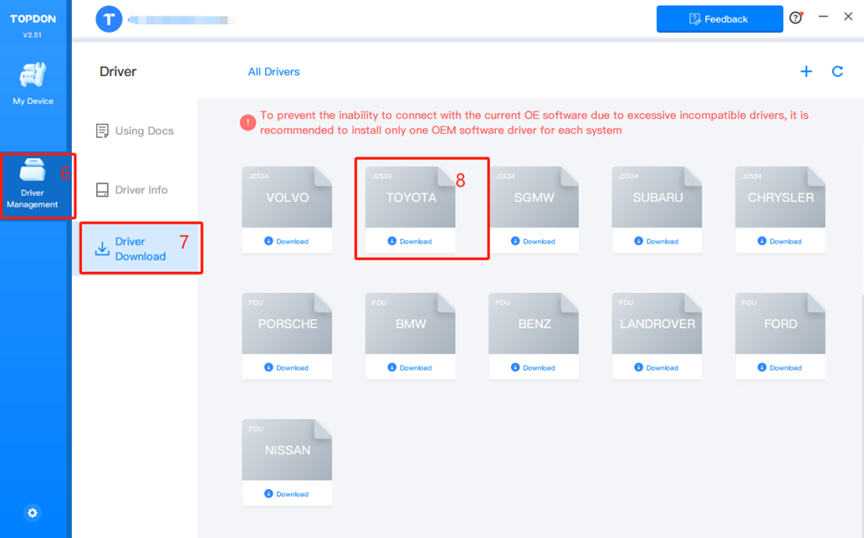

3.      Click Driver Management > Driver Download. (Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.)

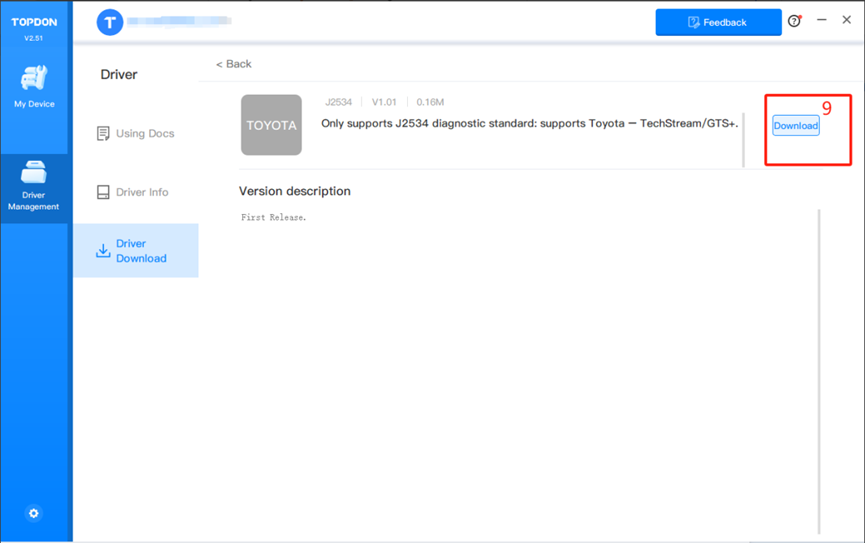

4.      Click TOYOTA and click Download to download the driver.

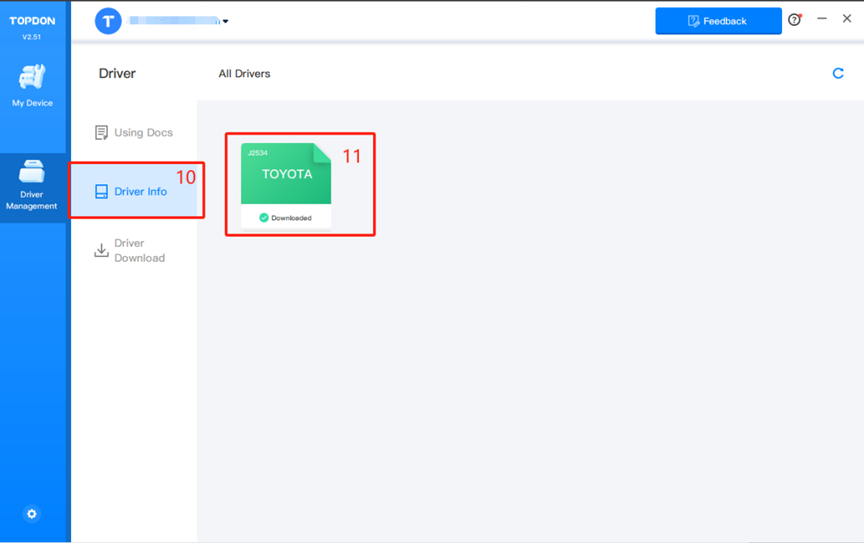

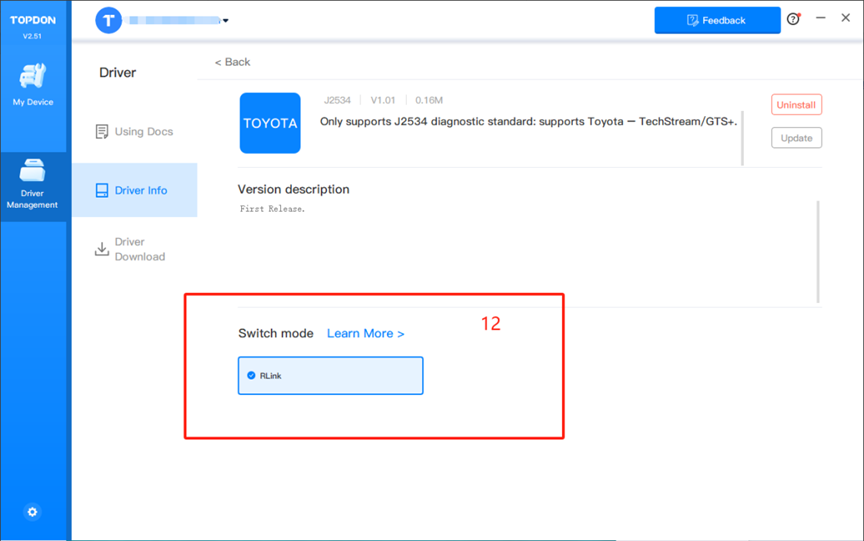

5.      Click Driver Management > Driver Info. Then click TOYOTA to check the driver mode.



6.      When using RLink devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

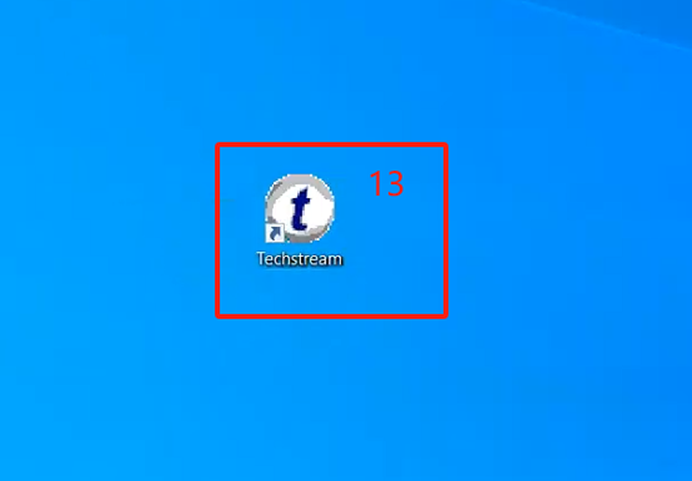

7.      Double click the icon to open the Techstream.

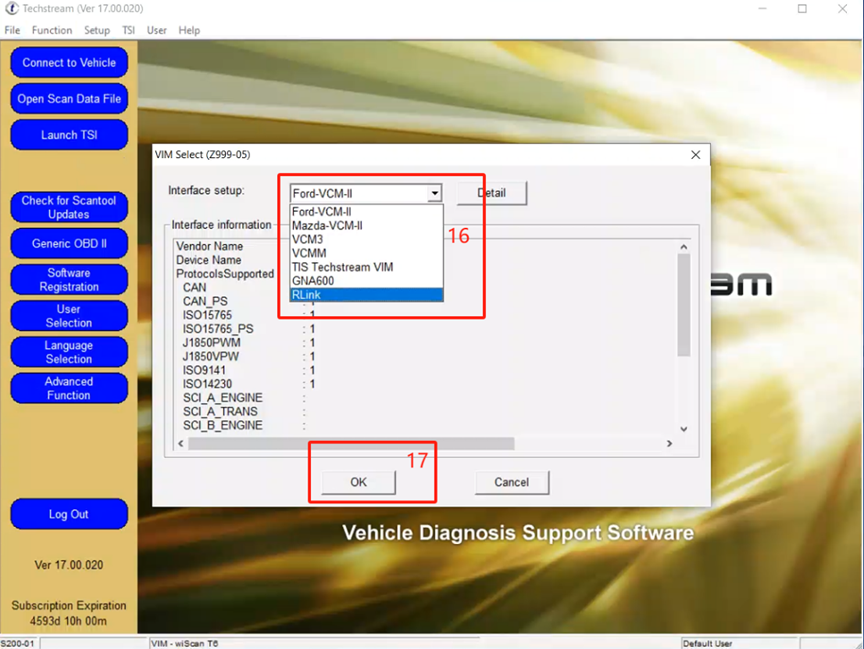

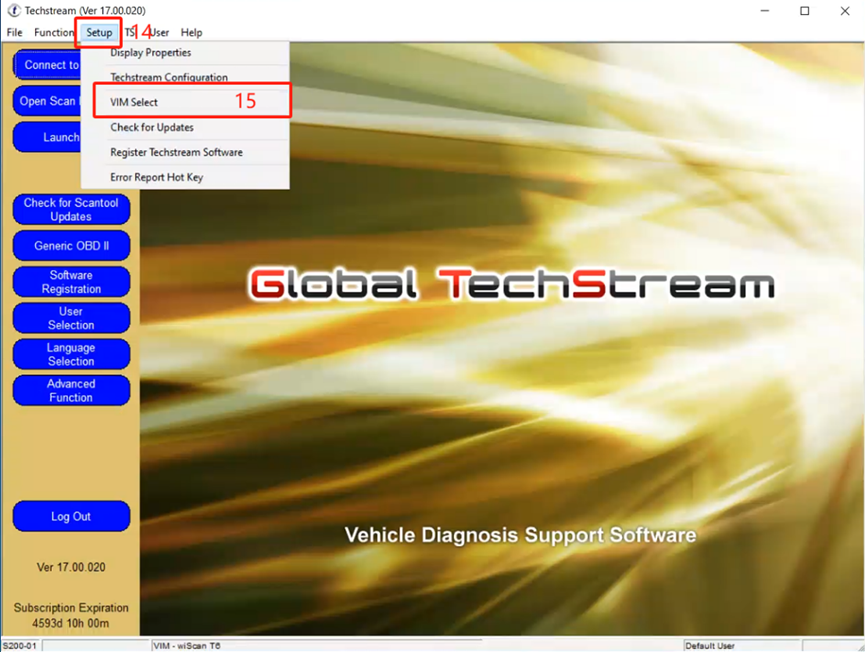

8.      Click Setup and click VIM Select. Then choose RLink driver mode from the interface setup drop-down list and click OK.

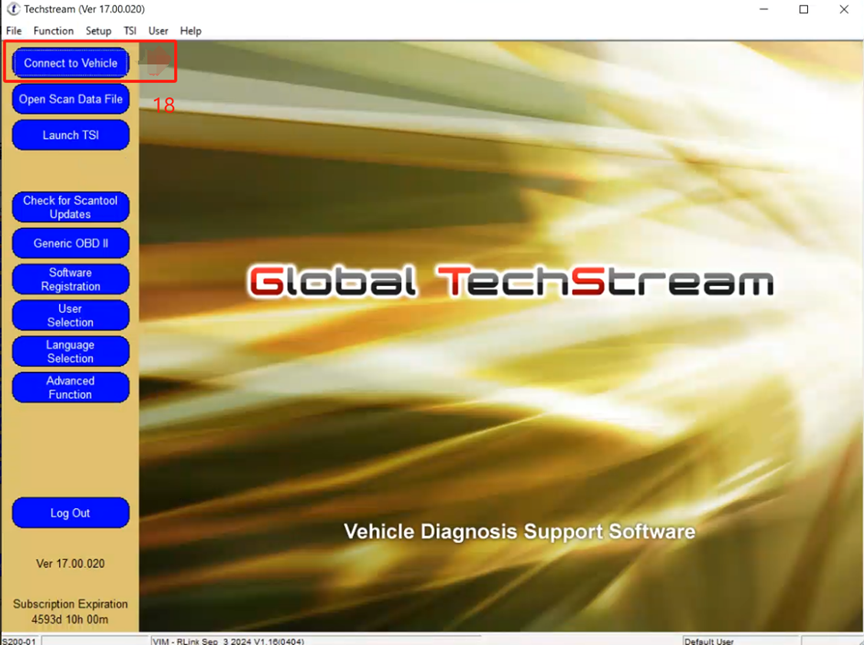

9.      Click Connect to Vehicle to start vehicle diagnostics.
