BMW OEM Software with RLink J2534 Connection Instructions

BMW OEM Software with RLink J2534 Connection Instructions

TipsYou need to install the BMW OEM software before use. If it's not installed yet, you can download and install it from the official BMW website.

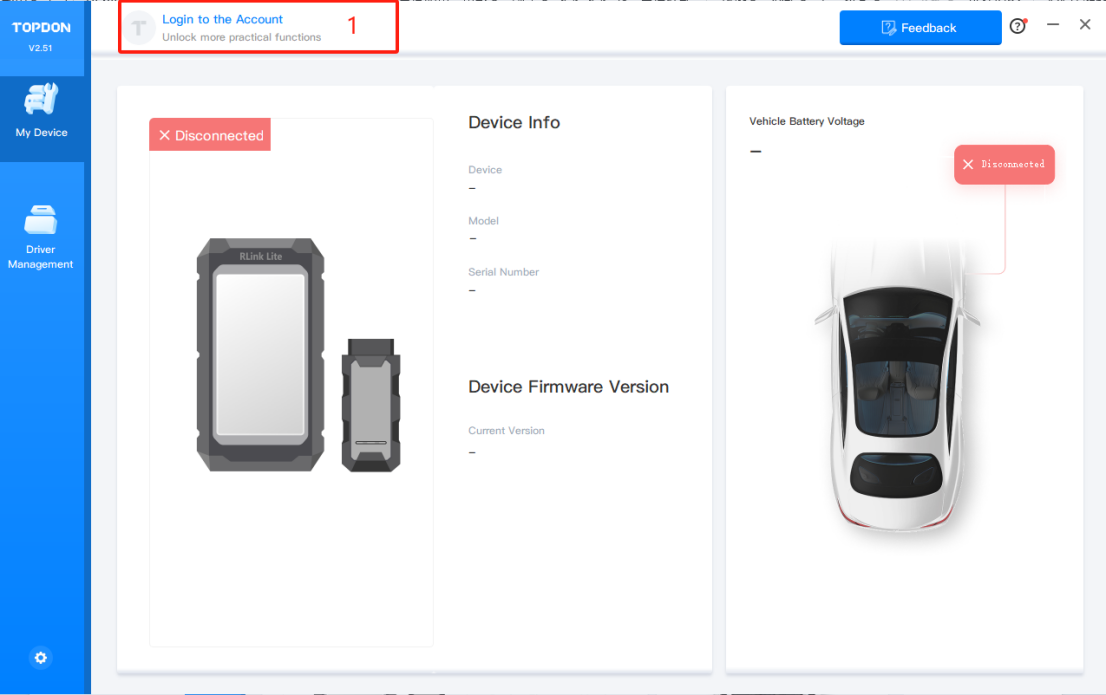

1. Open the RLink Platform.Clicking “Login to the Account” will automatically

redirect you to the login page.Log in to the account bound to the RLink J2534 device.

Note: After binding and activating the device and downloading the driver, you can use the RLink J2534 device to perform vehicle diagnostics without opening the RLink Platform later.

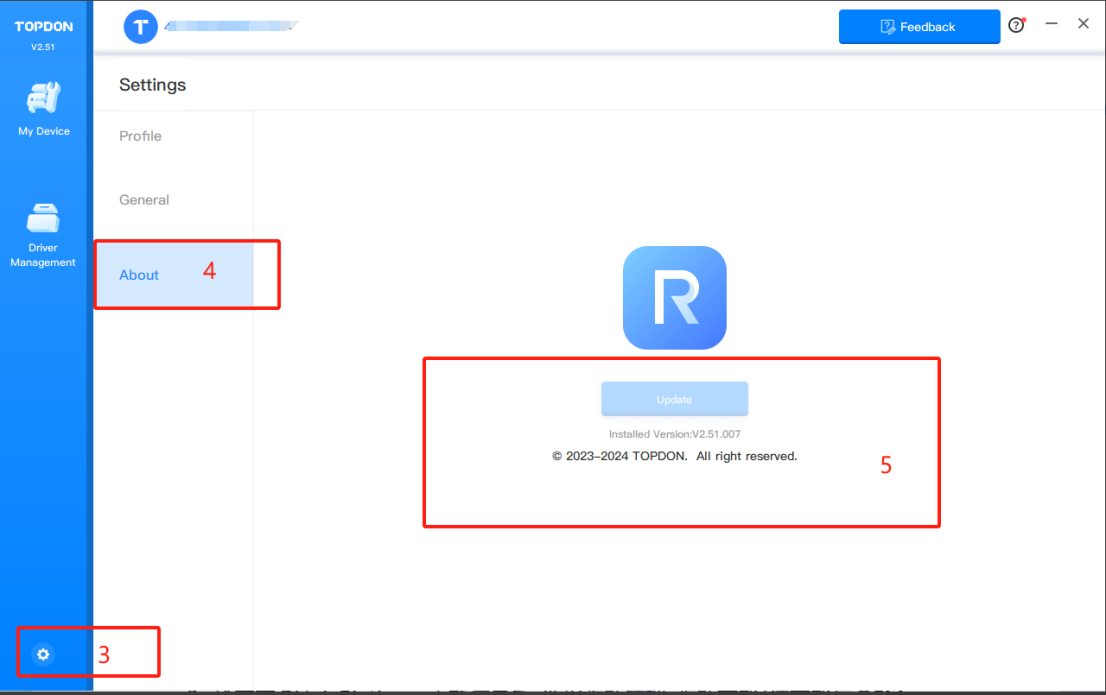

2. Click the settings icon. Then click About to check whether there is an update for the RLink Platform. If yes, click Update.

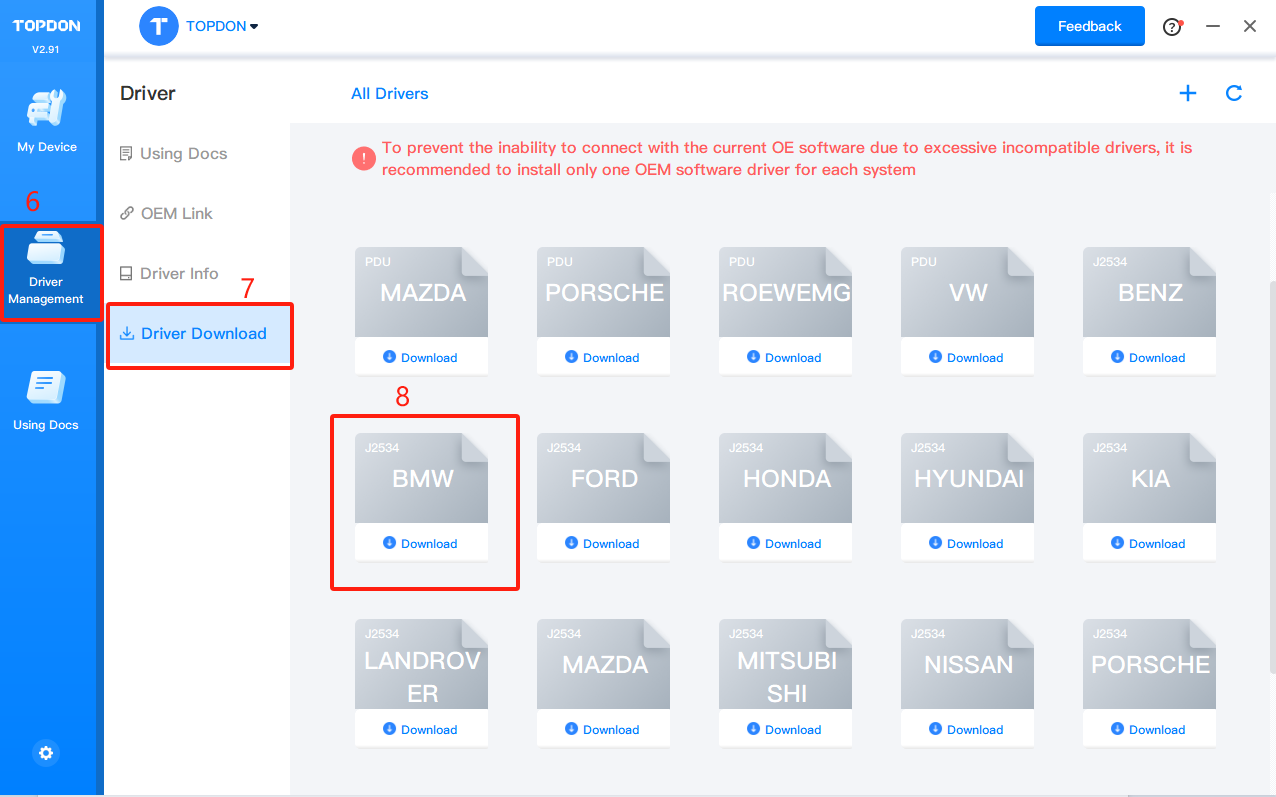

3. Click Driver Management > Driver Download.

Note:Download the corresponding driver according to the OEM software. Do not download drivers that are not related to the OEM software.

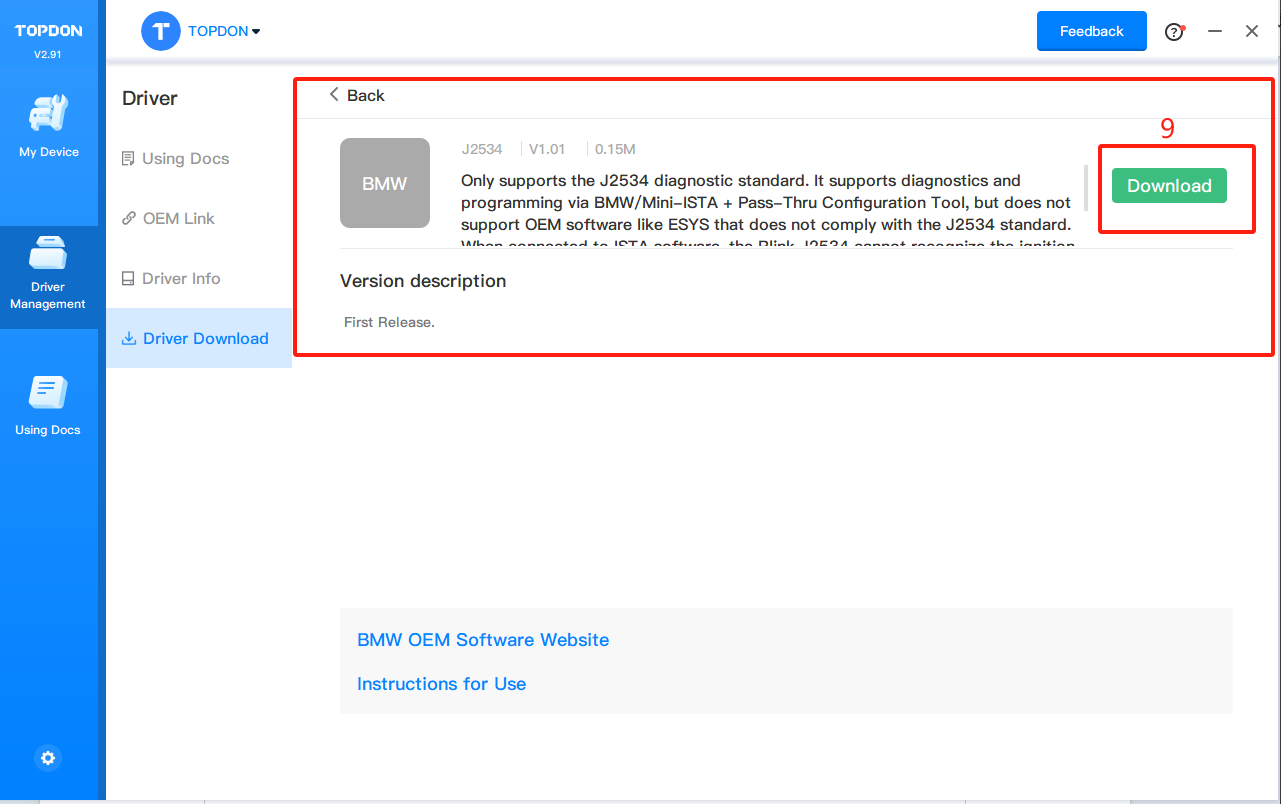

4. Click BMW and click Download to download the driver.

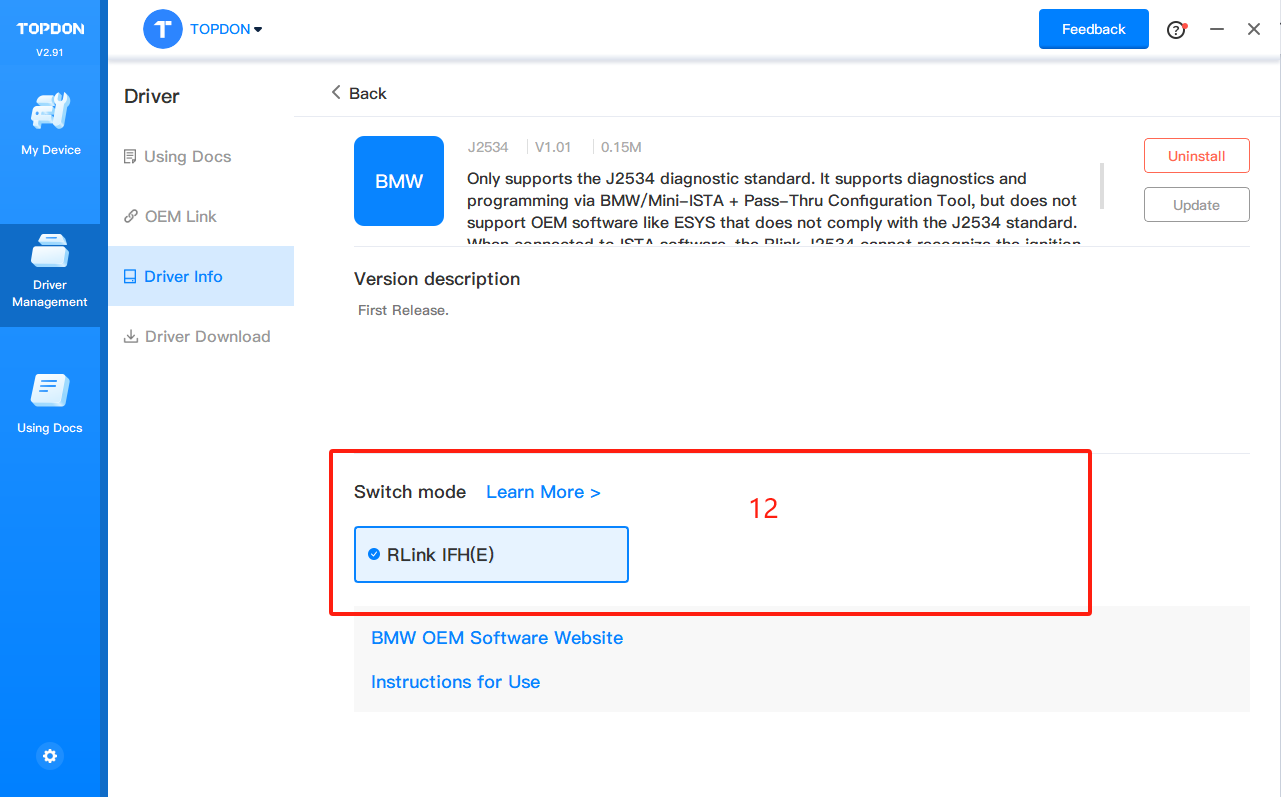

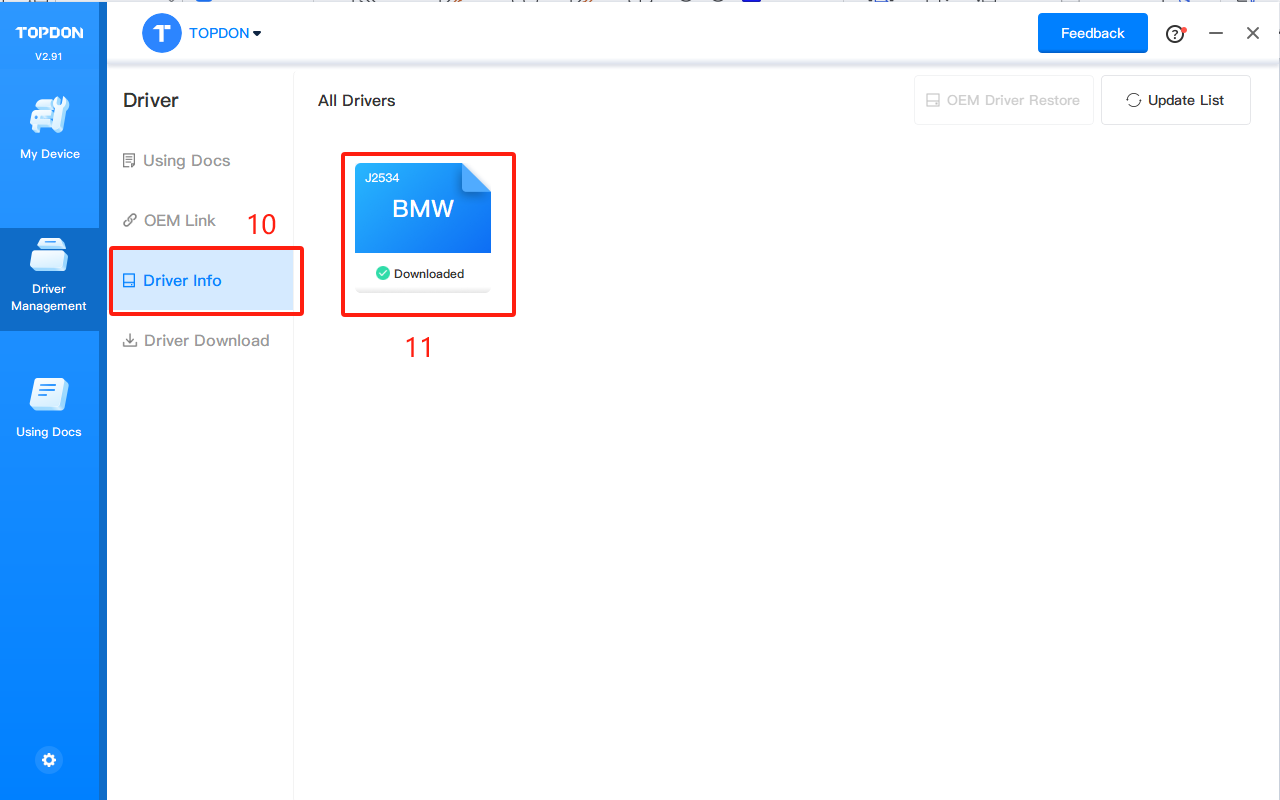

5. Click Driver Management > Driver Info. Then click BMW to configure the driver mode.


6. When using RLink J2534 devices, select RLink as the diagnostic interface on the OEM software. If you are connecting to the original VCI or third-party VCI, open the OEM software and select the original VCI or third-party VCI as the diagnostic interface. This driver will not have any impact.

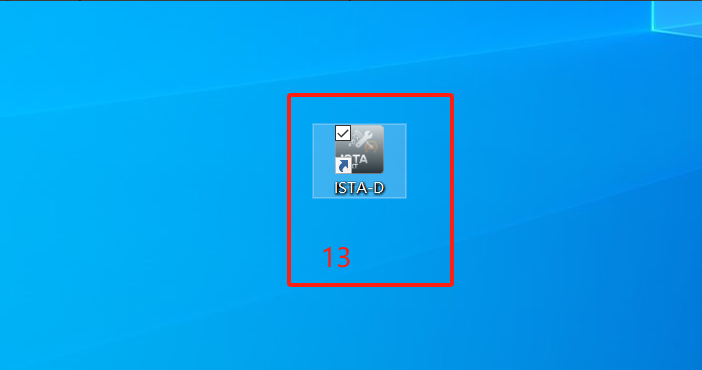

7. Double click the icon to open the ISTAD.

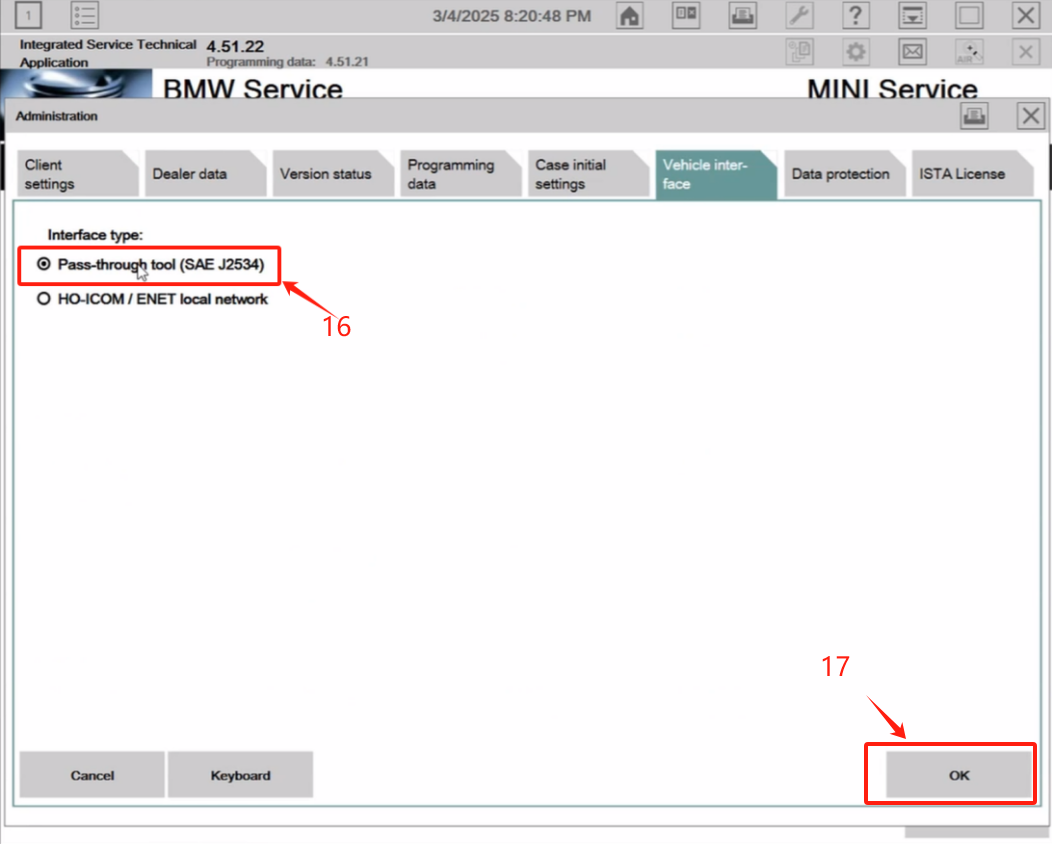

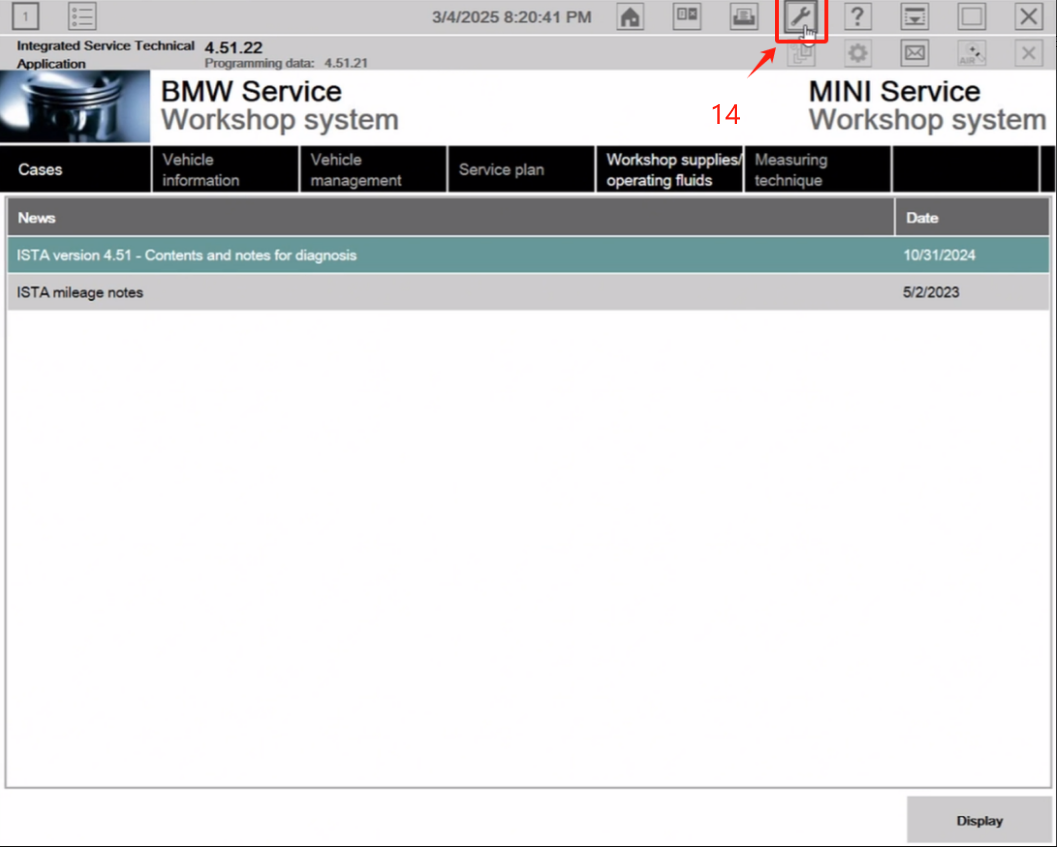

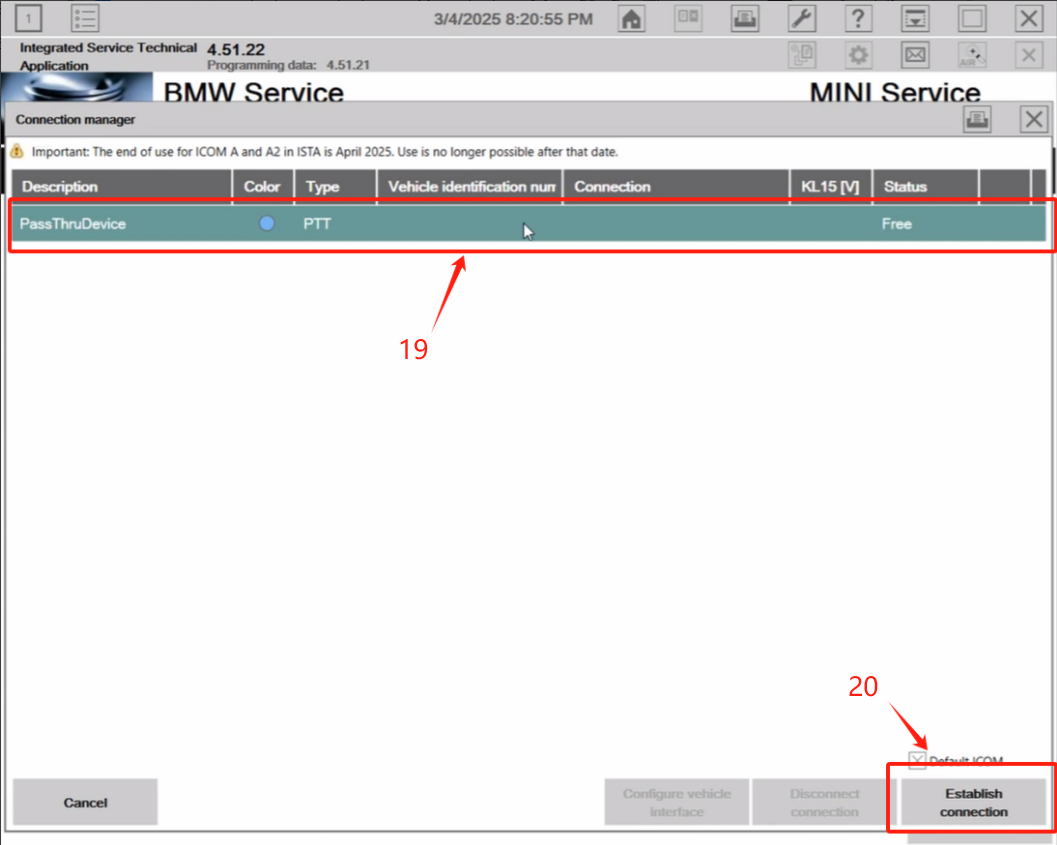

8. The ISTAD connection order is as follows:


If you encounter any problems, you can send an email to support@topdon.com.
